InterfaceV-by-One® HSTHCV244A-QP

Overview

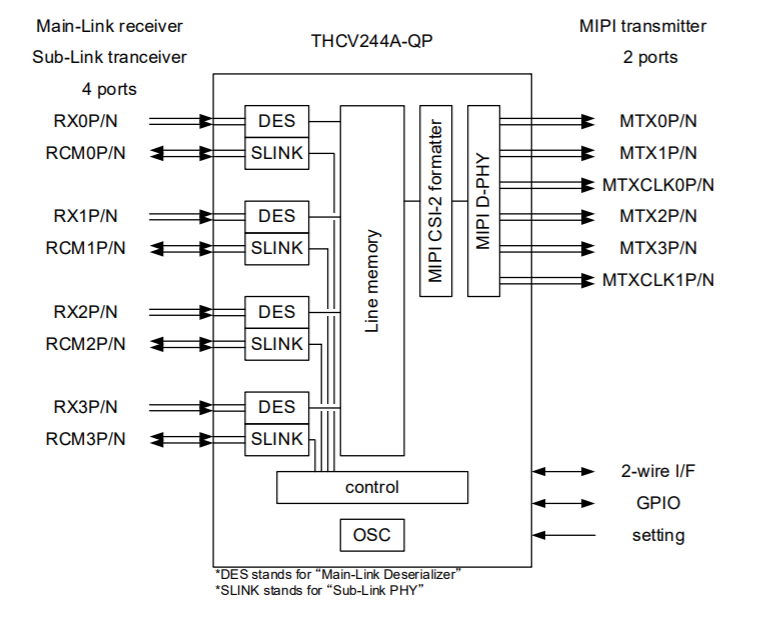

The THCV241A - THCV244A-QP SerDes Chipset provides long distance and high speed image data link solution for MIPI® CSI-2, camera serial interface. It has high speed image data channel and low speed bidirectional control channel over the link. The high speed image data link are designed to support up to 1080p60 Quad camera image signal with twisted pair or coaxial cables. The bidirectional control link supports to communicate with I2C/GPIO.
- For 4 camera (1080p 30fps 10bit or 1080p 60fps 8bit) system
- For 3 camera (1080p 60fps 10bit) system
- V-by-One® HS to MIPI® CSI-2 convertion
- V-by-One®HS input
Supports up to 4.0Gbps(effective rate 3.2Gbps)
Supports 1,2,3 or 4 lanes - MIPI® CSI-2 output
Supports up to 1.49Gbps/lane
Supports 1,2 or 4 lane - Power Supply voltage: 1.7V-3.6V、1.15V-1.3V
- Bi-directional system control link with I2C/GPIO
- Package:QFN64(9mm x 9mm)
- Operating temp.:-40 to 105℃
- Recommended Tx :
THCV241A
THCV231
THCV235
- Applications :
Dash cam
Medical camera
Security camera
Industrial camera
-“MIPI®” is a registered trademark of MIPI Alliance, Inc.
