PowerPower Modules

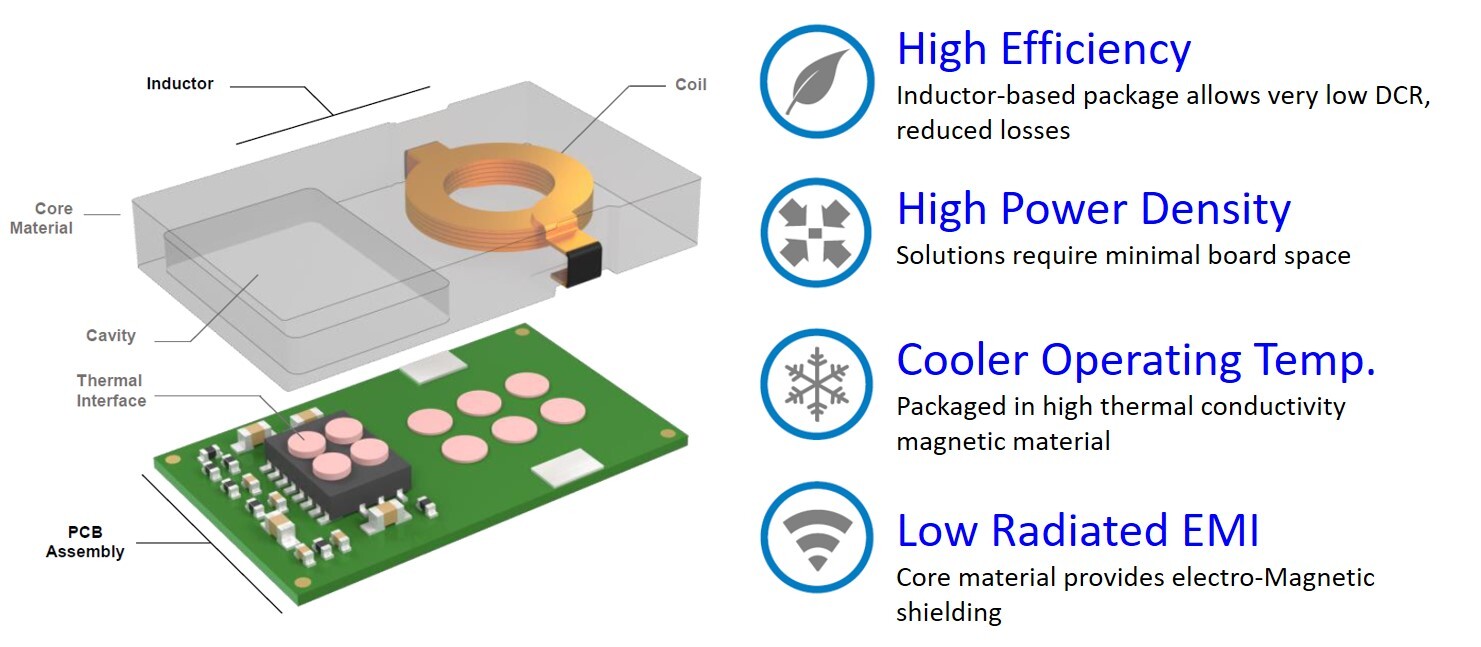

THV8XXXX series is the small package power module which realized the industry's best-level performance of ultra-high-speed transient response for stability behavior of LSI(FPGA, ASIC, ASSP). THV8XXXX seires can flexible setting output voltage turn-on and turn off delay time. In addition, THV8XXXX series has a output discharge function to On/Off sequence and prevent a malfunction of the load when the turn-off.

Part Number Datasheet Design Guide DescriptionInput
Voltage
[V]
Output
Voltage
[V]
Output
Current
[A]
Accuracy
[%]
Operating
temperature
range
[C]
PackagePackage
size
[mm]
Buy
Chip1stop
Buy
Digi-key
THPM4301A
- - 2.95-6 0.6-3.6 6 1 -40 to +85 LGA 11.0×9.1×2.80 Buy -
THPM4401A
- - 4.0-28 0.6-5 8 1.5 -40 to +85 LGA 15.2×9.2×3.0 Buy -
THPM4601A
- - 4.0-16 0.6-5.5 12 0.8 -40 to +85 LGA 15.2×15.2×3.2 Buy -
THV81800
- - 7.5-28 0.85-4 8 1 -40 to +85 LGA 15.0×15.0×2.82 Buy -
