Overview

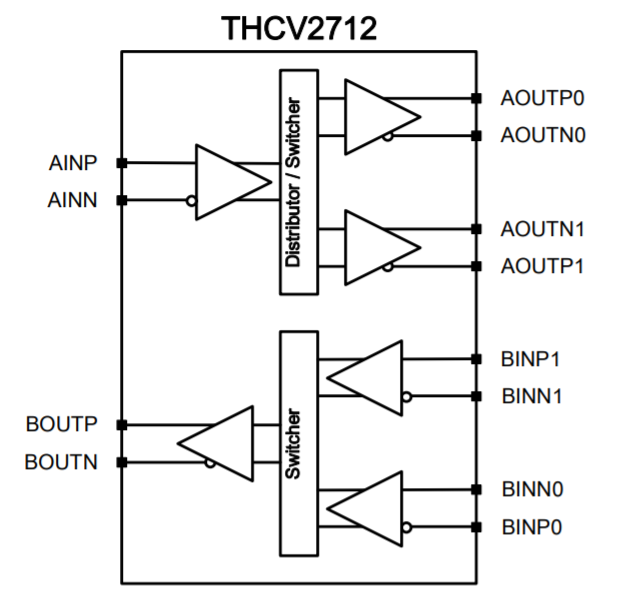

The THCV2712 is a high performance 1:2 signal distributor for V-by-One® HS with date rates up to 4Gbps and integrated 2:1 and 1:2 signal switcher support bi-directional communication.

  • Distribution(Replication) Mode
    V-by-One® HS 1:2 Distribution
  • Switch Mode
    V-by-One® HS 2:1 Switch
    V-by-One® HS 1:2 Switch
  • V-by-One® HS output :
    Supports up to 4.0Gbps(effective rate 3.2Gbps)
  • Power Supply voltage : 3.3V
  • Package : QFN40 (5mm x 5mm)
  • Application :
     - Digital TV
     - Digital Signage
     - FPD Inspection Equipment
     - Camera
     - Printer
