InterfaceV-by-One® HSTHCV235
Overview

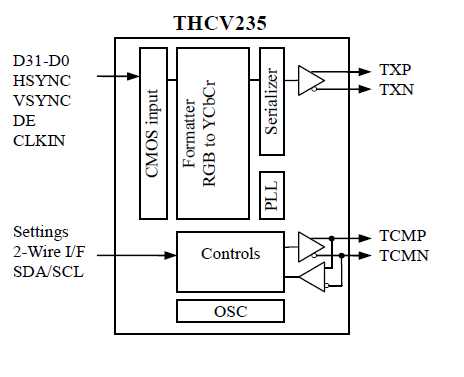

The THCV235 video data serializer provides long distance and high speed video data link solution for camera and display serial interface. It has high speed video data channel and low speed bidirectional control channel over the link. The high speed video data link is designed to support 1080p60 video signal with an embedded clock over a single twisted pair or coaxial cable. The bidirectional control link supports to communicate with I2C/UART/GPIO.
- LVCMOS parallel to CML serial conversion
- LVCMOS parallel video input
32bit/pixel
1.8-3.3V (JEDEC) - CML serial video output
4.0Gbps(effective rate 3.2Gbps)/lane - Spread spectrum clock generator
- RGB⇔YCbCr color space conversion
ITU-R.BT601/BT709 - Power supply voltage:1.7V-3.6V
- Bi-directional system control link with I2C/UART//GPIO
- Package:QFN64
- Operating temp:-40 to 105℃
- Recommended Rx:
THCV236
THCV236-Q - Application:
Automotive
Security camera
LVCMOS Parallel Input | CSC* | Input Clock Frequency |
---|---|---|
YCbCr4:2:2 8/10/12/16bit |
-
|
24 to 160MHz |
YCbCr4:2:2 20bit | - | 10 to 133MHz |
YCbCr4:4:4 24bit | - | 7.5 to 100MHz |
YCbCr4:4:4 30bit | - | 6 to 80MHz |
RGB 18bit (6bpc)
|
- | 10 to 133MHz |
✓ | 24 to 160MHz | |
RGB 24bit (8bpc) |
-
|
7.5 to 100MHz
|
✓ | 24 to 160MHz | |
RGB 30bit (10bpc) |
-
|
6 to 80MHz
|
✓ | 8 to 160MHz |
