Overview

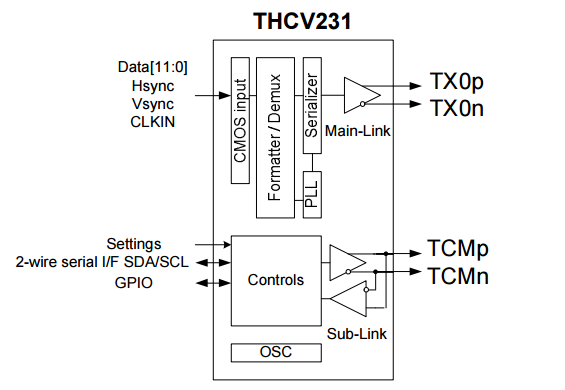

The THCV231 video data serializer provides long distance and high speed video data link solution for camera and display serial interface. It has high speed video data channel and low speed bidirectional control channel over the link. The high speed video data link is designed to support 1080p60 video signal with an embedded clock over a single twisted pair or coaxial cable. The bidirectional control link supports to communicate with a I2C compatible serial control bus.

  • LVCMOS parallel to CML serial conversion
  • LVCMOS parallel video input
    　14bit/pixel
    　1.8-3.3V (JEDEC)
  • CML serial video output
    　4Gbps（effective rate 2.24Gbps）/lane
  • Spread spectrum clock generator
  • Supply voltage range：1.7V to 3.6V
  • Bi-directional system control link with I2C compatible serial control bus
  • Package：QFN32
  • Operating temp：-40 to 105℃
  • Recommended Rx：
    　THCV236
  • Application：
    　Dash cam
    　Security camera

LVCMOS Parallel Input CSC* Input Clock Frequency
YCbCr4:2:2 8/10/12bit - 24 to 160MHz
