Overview

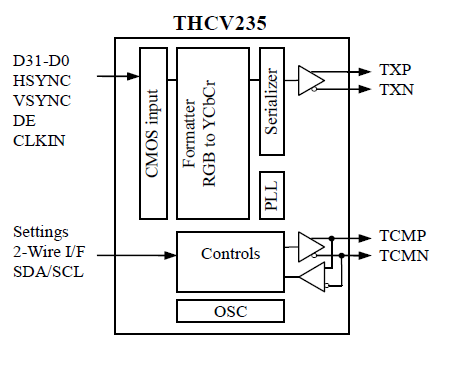

The THCV235 video data serializer provides long distance and high speed video data link solution for camera and display serial interface. It has high speed video data channel and low speed bidirectional control channel over the link. The high speed video data link is designed to support 1080p60 video signal with an embedded clock over a single twisted pair or coaxial cable. The bidirectional control link supports to communicate with I2C/UART/GPIO.

  • LVCMOS parallel to CML serial conversion
  • LVCMOS parallel video input
     32bit/pixel
     1.8-3.3V (JEDEC)
  • CML serial video output
     4.0Gbps(effective rate 3.2Gbps)/lane
  • Spread spectrum clock generator
  • RGB⇔YCbCr color space conversion
     ITU-R.BT601/BT709
  • Power supply voltage:1.7V-3.6V
  • Bi-directional system control link with I2C/UART//GPIO
  • Package:QFN64
  • Operating temp:-40 to 105℃
  • Recommended Rx:
     THCV236
     THCV236-Q
  • Application:
     Automotive
     Security camera

LVCMOS Parallel Input CSC* Input Clock Frequency
YCbCr4:2:2 8/10/12/16bit
-
24 to 160MHz
YCbCr4:2:2 20bit - 10 to 133MHz
YCbCr4:4:4 24bit - 7.5 to 100MHz
YCbCr4:4:4 30bit - 6 to 80MHz
RGB 18bit (6bpc)
- 10 to 133MHz
24 to 160MHz
RGB 24bit (8bpc)
-
7.5 to 100MHz
24 to 160MHz
RGB 30bit (10bpc)
-
6 to 80MHz
8 to 160MHz
  CSC* : Color Space Conversion (irreversible conversion)
