Overview

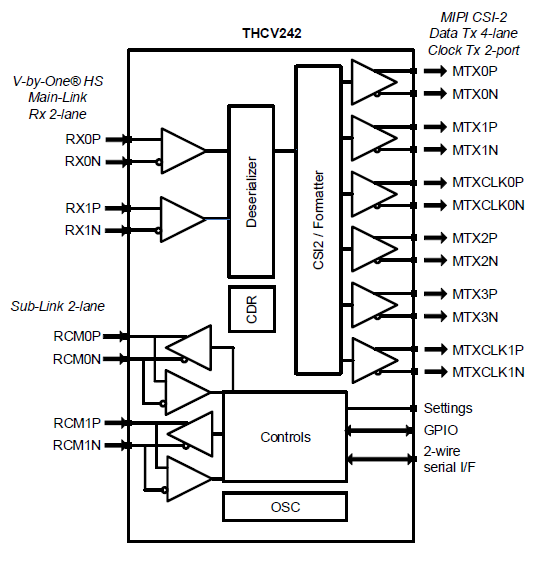

The THCV241A - THCV242 SerDes Chipset provides long distance and high speed image data link solution for MIPI® CSI-2, camera serial interface. It has high speed image data channel and low speed bidirectional control channel over the link. The high speed image data link is designed to support 1080p60 image signal with an embedded clock over a single twisted pair or coaxial cable. The bidirectional control link supports to communicate with I2C/GPIO.

Not Recommended for New Designs(NRND)

THCV242 is in production, but not recommended for new designs.
THCV242A is recommended.
  • V-by-One® HS to MIPI® CSI-2 convertion
  • V-by-One®HS input
    Supports up to 4.0Gbps(effective rate 3.2Gbps)
    Supports 1 or 2 lanes
  • MIPI® CSI-2 output
    Supports up to 1.2Gbps/lane
    Supports 1,2 or 4 lane
    2lane x 2port Distribution(Replication) mode
  • Power Supply voltage: 1.7V-3.6V、1.1V-1.3V
  • Bi-directional system control link with I2C/GPIO
    I2C/GPIO(Up to 4bit)
  • Package:QFN64(9mm x 9mm)
  • Operating temp.:-40 to 105℃
  • Recommended Tx :
     THCV241A
     THCV231
     THCV235
  • Applications :
     Dash cam
     Security camera
     Industrial camera
     Endoscope
-“MIPI®” is a registered trademark of MIPI Alliance, Inc.
