Overview

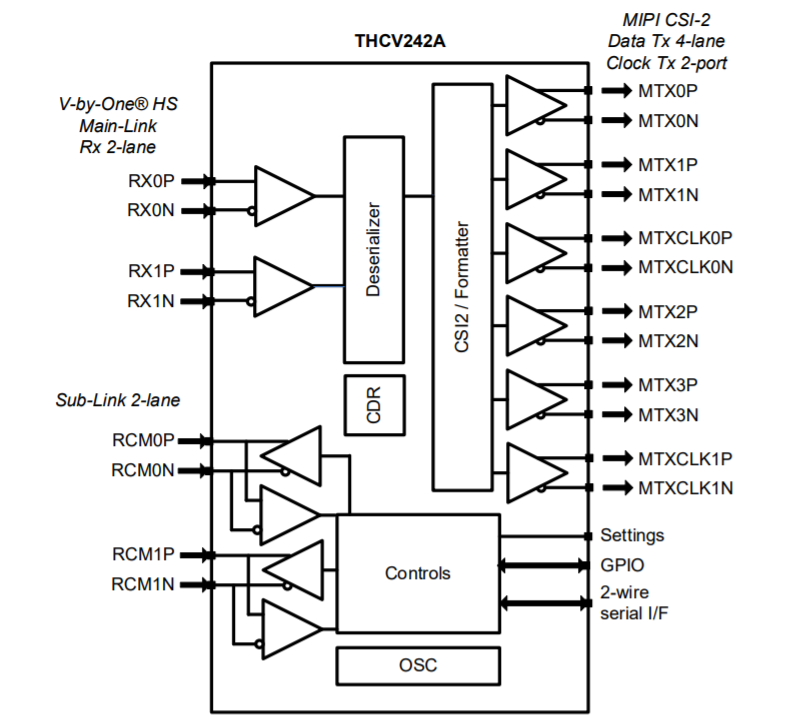

The THCV241A - THCV242A SerDes Chipset provides long distance and high speed image data link solution for MIPI® CSI-2, camera serial interface. It has high speed image data channel and low speed bidirectional control channel over the link. The high speed image data link is designed to support 1080p60 image signal with an embedded clock over a single twisted pair or coaxial cable. The bidirectional control link supports to communicate with I2C/GPIO.

  • V-by-One® HS to MIPI® CSI-2 convertion
  • V-by-One®HS input
    Supports up to 4.0Gbps（effective rate 3.2Gbps）
    Supports 1 or 2 lanes
  • MIPI® CSI-2 output
    Supports up to 1.2Gbps/lane
    Supports 1,2 or 4 lane
    2lane x 2port Distribution(Replication) mode
  • Power Supply voltage：　1.7V-3.6V、1.1V-1.3V
  • Bi-directional system control link with I2C/GPIO
    I2C/GPIO(Up to 4bit)
  • Package：QFN64（9mm x 9mm）
  • Operating temp.：-40 to 105℃
  • Recommended Tx :
    　THCV241A
    　THCV231
    　THCV235
  • Applications :
    　Dash cam
    　Security camera
    　Industrial camera
    　Endoscope
-“MIPI®” is a registered trademark of MIPI Alliance, Inc.
