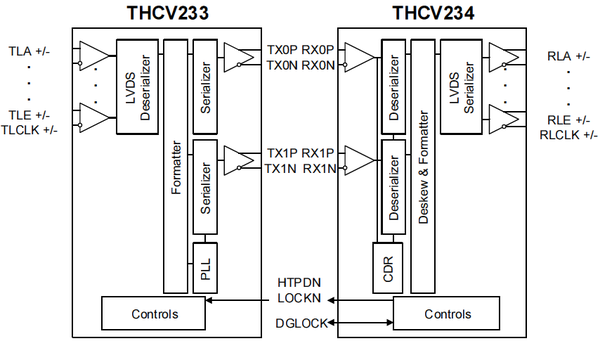

THCV233/234 Block Diagram

Overview

The THCV233 is designed to support video data conversion from LVDS input signals to V-by-One®HS signals. It has one high-speed data lane and effective maximum serial data rate is 3.36Gbps/lane.

  • LVDS to V-by-One®HS Conversion
  • 5ch LVDS input
     32bits/pixel
     63-735Mbps/ch
  • V-by-One®HS 1lane output
     4.2Gbps(effective rate 3.36Gbps)/lane
  • Power Supply:1.8/3.3V
  • Package:QFN48
  • Recommended Rx:
     THCV220
     THCV234
LVDS Data Input V-by-One®HSOutput LVDS  Input Clock Frequency
 4ch(24bit) 1Lane 9MHz to 100MHz
 5ch(32bit) 1Lane 9MHz to 105MHz
