InterfaceV-by-One® HS THCV234
Overview
The THCV234 is designed to support video data conversion from V-by-One®HS input signals to LVDS signals. It has one high-speed data lane and, effective maximum serial data rate is 3.36Gbps/lane.
- V-by-One®HS to LVDS Conversion
- V-by-One®HS 1lane input
4.2Gbps (effective rate 3.36Gbps) / lane - 5ch LVDS output
32bits/pixel
63-735Mbps/ch - Power Supply：1.8/3.3V
- Package：QFN48

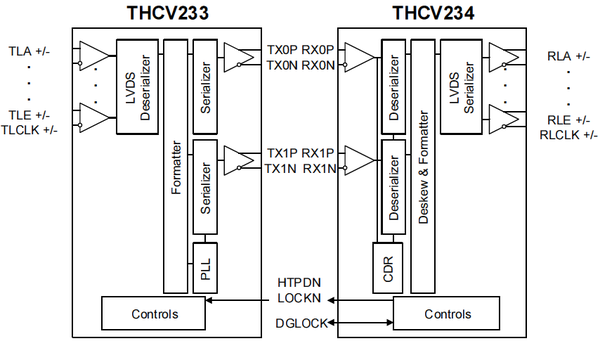

- Recommended Tx：
THCV219
THCV233
| V-by-One®HS Iutput | LVDS Data Output | LVDS Input Clock Frequency |
|---|---|---|
| 1Lane | 4ch(24bit) | 9MHz to 100MHz |
| 1Lane | 5ch(32bit) | 9MHz to 105MHz |
