THC63LVD103D

Summary

The THC63LVD103D transmitter is designed to support pixel data transmission between Host and Flat Panel Display from NTSC to 1080p 60Hz, adopting wide frequency range, suited to not only inspection equipment but also security camera system.

Features

  • LVCMOS to LVDS Conversion
  • LVCMOS Parallel input
     35bits/pixel
     160M pixel/sec.(Clock Freq. 8 to 160MHz)
     1.2V to 3.3V input supported
     Input clock edge selectable
  • 5chs LVDS output
     1.12Gbps/ch
     LVDS swing mode to reduce EMI
  • Package:TQFP64
     Pin Compatible with THC63LVD103
  • Recommended Rx:
     THC63LVD104C

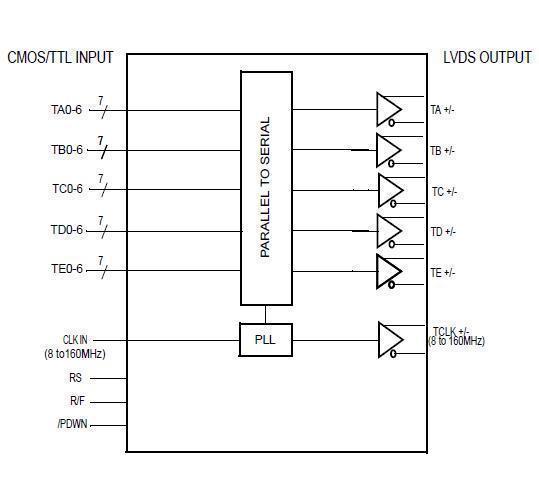

Block Diagram
