Overview

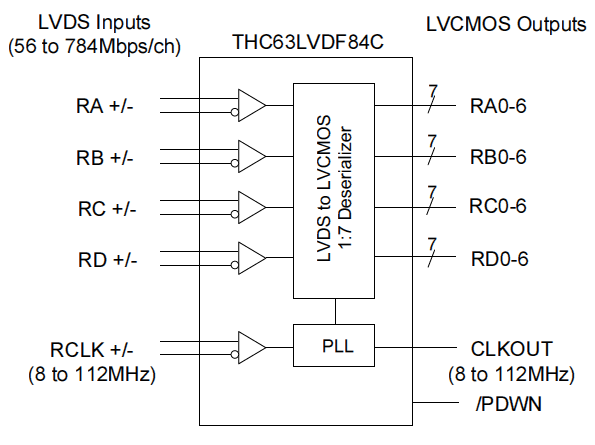

The THC63LVDF84C receiver converts the four LVDS data streams back into 24bits of LVCMOS data with falling edge clock, suited to not only mid-sized LCD panels but also security camera systems, multi-function Printers, and tablet devices.

  • LVDS to LVCMOS Conversion
  • 4chs LVDS input
    784Mbps/ch
    LVDS input skew margin ±550ps@65MHz
  • LVCMOS Parallel output
    28bit/pixel
    Clock Freq. 8 to 112MHz
    based on Falling edge
  • Power Supply:3.3V
  • Package:TSSOP56
    ※Pin Compatible with THC63LVDF84B
  • Operating Temperature:-40 to 85℃
  • Recommended Tx:
     THC63LVDM83D
     THC63LVDM87
