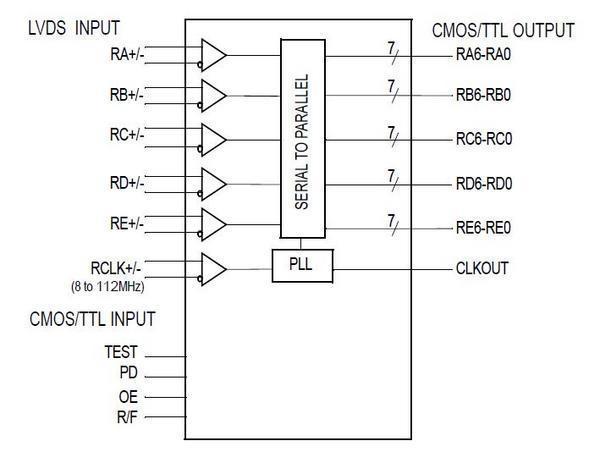

THC63LVD104C_Block Diagram

Overview

The THC63LVD104C receiver is designed to support pixel data transmission between Host and Flat Panel Display from NTSC up to SXGA resolutions. The THC63LVD104C converts the LVDS data streams back into 35bits of LVCMOS data with choice of the rising edge clock, suited to multi-function printers and security camera systems.

  • LVDS to LVCMOS Conversion
  • 5chs LVDS input
     784Mbps/ch
     LVDS input skew margin ±400ps
    Failsafe Supported
  • LVCMOS Parallel output
     35bit/pixel
     112Mpixel/sec. (Clock Freq. 8 to 112MHz)
     Clock reverse of data output
  • Power Supply:3.3V
  • Package:TQFP64
     Pin Compatible with THC63LVD104A
  • Operating Temperature:-20 to 85℃
  • Recommended Tx:
     THC63LVDM83D
     THC63LVDM87
     THC63LVD103D
