Overview

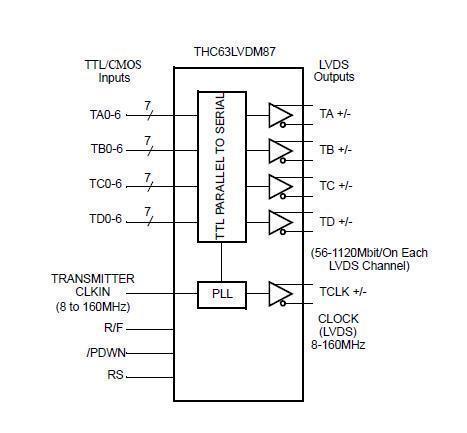

The THC63LVDM87 transmitter is designed to support pixel data transmission of up to 1080p/WUXGA resolutions between Host and Flat Panel Display, adopting low voltage and small package, suited to tablet and laptop PC such as mobile devices.
- LVCMOS to LVDS Conversion
- LVCMOS Parallel input
28bits/pixel
160M pixel/sec.（Clock Freq. 8 to 160MHz）
1.8V/2.5V/3.3V input supported
Input clock edge selectable - 4chs LVDS output
1.22Gbps/ch
LVDS swing mode to reduce EMI - Power Supply：1.8V
IOVCC 1.8/2.5/3.3V selectable - Package：VFBGA49
World smallest package of equivalent products (5mmｘ5mm) - Operating Temperature：-40 to 85℃
- The highest level power consumption
Typ.44mW at WXGA 60Hz - Recommended Rx：
THC63LVDF84C
THC63LVDR84C
THC63LVD104C
