Overview

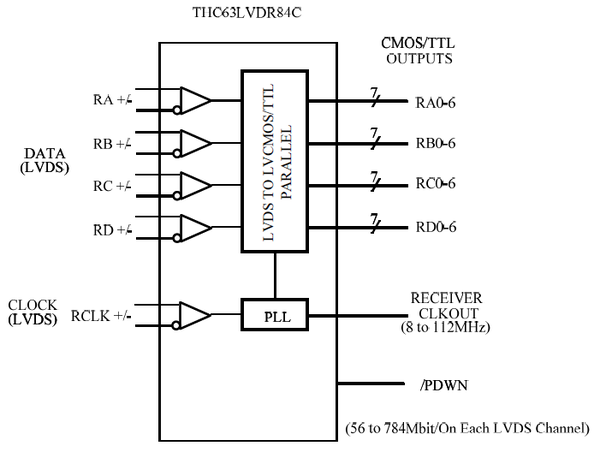

THC63LVDR84C receiver converts the four LVDS data streams back into 24bits of LVCMOS data with rising edge clock, suited to not only mid-sized LCD panels but also security camera systems, multi-function Printers, and tablet devices.
- LVDS to LVCMOS Conversion
- 4chs LVDS input
784Mbps/ch
LVDS input skew margin ±550ps@65MHz - LVCMOS Parallel output
28bit/pixel
Clock Freq. 8 to 112MHz
based on Rising edge - Power Supply：3.3V
- Package：TSSOP56
- Operating Temperature：-40 to 85℃
- Recommended Tx：
THC63LVDM83D
THC63LVDM87
