Overview

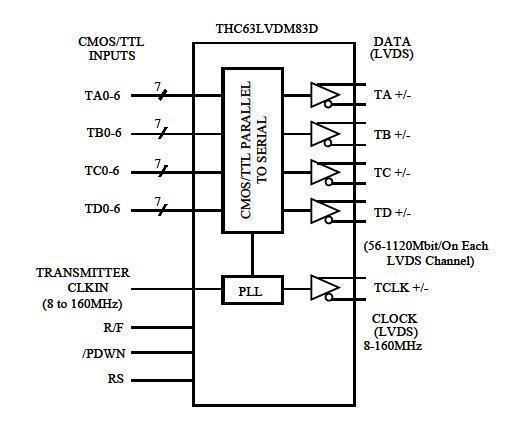

The THC63LVDM83D transmitter is designed to support pixel data transmission of up to 1080p/WUXGA resolutions between Host and Flat Panel Display. It has been used in a wide field successfully not only LCD panels but also security cameras, multi-function printers, tablet devices.

  • LVCMOS to LVDS Conversion
  • LVCMOS Parallel input
    28bits/pixel
    160M pixel/sec.(Clock Freq. 8 to 160MHz)
    1.2V-3.3V input supported
    Input clock edge selectable
  • 4chs LVDS output
    1.12Gbps/ch
    LVDS swing mode to reduce EMI
  • Power Supply:3.3V
  • Package:TSSOP56
    ※Pin compatible with THC63LVDM83R
  • Recommended Rx:
     THC63LVDF84C
     THC63LVDR84C
     THC63LVD104C
