Overview
The THC63LVD103D transmitter is designed to support pixel data transmission between Host and Flat Panel Display from NTSC to 1080p 60Hz, adopting wide frequency range, suited to not only inspection equipment but also security camera system.

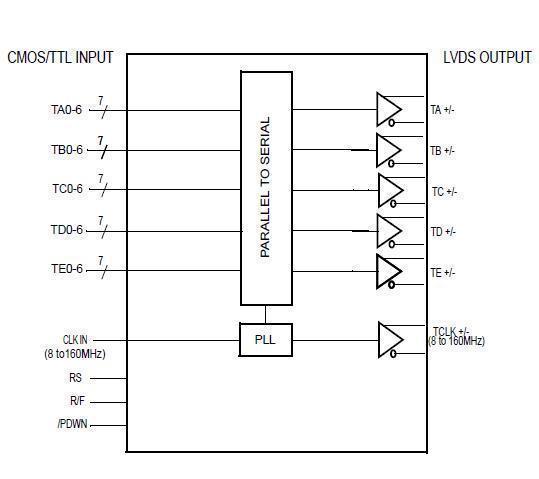

- LVCMOS to LVDS Conversion
- LVCMOS Parallel input
35bits/pixel
160M pixel/sec.(Clock Freq. 8 to 160MHz)
1.2V to 3.3V input supported
Input clock edge selectable - 5chs LVDS output
1.12Gbps/ch
LVDS swing mode to reduce EMI - Package:TQFP64
Pin Compatible with THC63LVD103 - Recommended Rx:
THC63LVD104C
