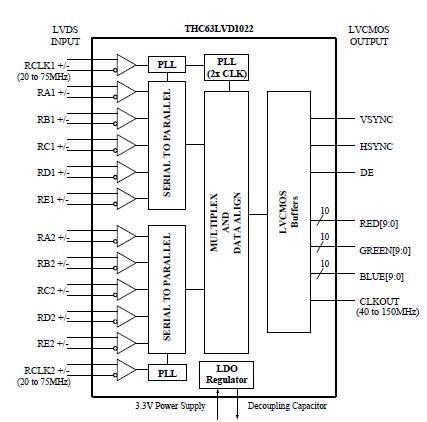

THC63LVD1022 Blockdiagram

Overview

The THC63LVD1022, a Dual Pixel Link LVDS receiver IC, is designed to support pixel data transmission of up to 1080p/60Hz between Host and Flat panel Display or between Camera Module and System Board, supporting varied I/O data mapping, suited to not only TV applications but also projector and security camera systems.

  • LVDS to LVCMOS Conversion
  • 5chh LVDS 2port (Dual Pixel Link)Input
     525Mbps/ch
     LVDS input skew margin ±400ps at 75MHz
     Failsafe supported
  • LVCMOS Parallel 1port output
     33bits/pixel(Sync Signal included)
     150Mpixel/sec(Clock freq. 20 to 75MHz)
     MSB/LSB reverse available
     R/G/B switching available
  • Package:TQFP100
  • Power Supply:3.3V
  • Operating temperature :0 to 85℃
  • Recommended Tx:
     THC63LVD827
     THC63LVD823B
     THC63LVD1023B
