THCV219

Summary

The THCV219 is designed to support video data convert 32bits LVCMOS input signals into V-by-One®HS signal. It has one high-speed data lane and, effective maximum serial data rate is 2.4Gbps/lane up to 720p/60Hz/30bit colors.

Features

  • LVCMOS to V-by-One®HS conversion
  • LVCMOS input
     32bits/pixel
  • V-by-One®HS output
     3.0Gbps(effective rate 2.4Gbps)/lane
  • Supply power:2.5V to 3.3V
  • Package:QFN64
  • Operating temp.:-40 to 85℃
  • AEC-Q100 ESD Protection
  • Recommended receivers:
     THCV220
     THCV234

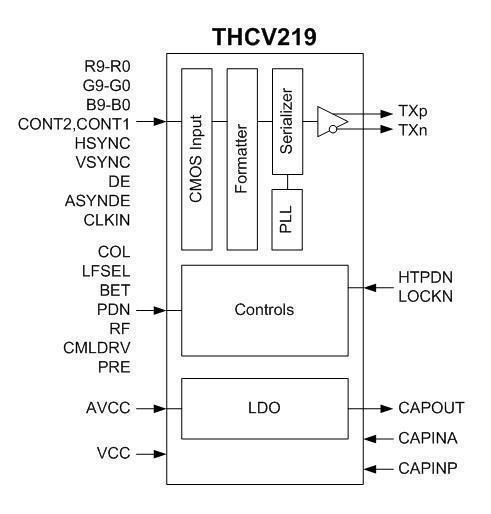

Block Diagram

LVCMOS Input V-by-One®HS Output  CMOS Input Clock Frequency
 24bit  1Lane  10MHz to 100MHz
 32bit  1Lane  7.5MHz to 75MHz
