THC63LVD823B

Summary

The THC63LVD823B transmitter is designed to support Dual Link transmission between Host and Flat Panel Display up to 1080p/QXGA resolutions, suited to LCD TVs and LCD monitors.

Features

  • LVCMOS to LVDS Conversion
  • LVCMOS Parallel 2ports input
    51bits/2pixel
    320M pixel/sec.(Max. Clock Freq. 160MHz)
    1.2V to 3.3V input supported
    Input clock edge selectable
  • 4chs LVDS 2ports (Dual Link) output
    1.22Gbps/ch
    LVDS swing mode to reduce EMI
  • Port 1/2 Asynchronous input available
  • Power Supply:3.3V
  • Package:TQFP100
    Pin Compatible with THC63LVD823 or THC63LVD823A
  • Operating Temperature:-20 to 70℃
  • Recommended Rx:
    THC63LVD1022
    THC63LVD1024

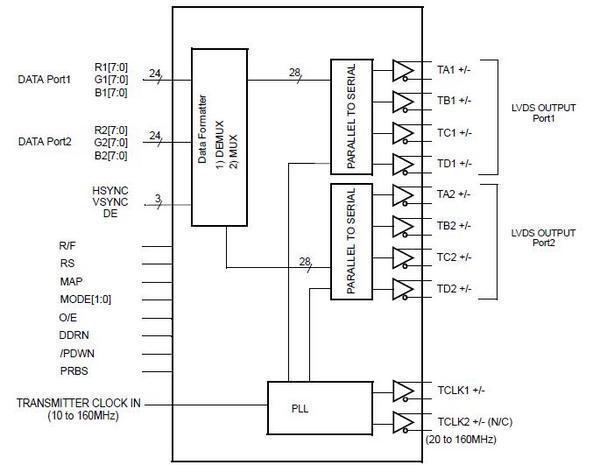

Block Diagram
