Overview

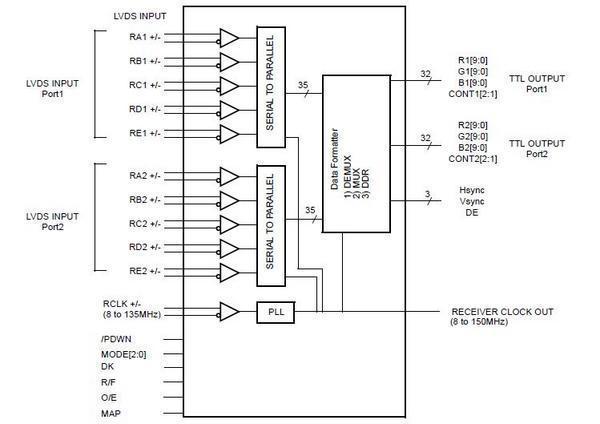

The THC63LVD1024 receiver is designed to support Dual Link transmission between Host and Flat Panel Display up to 1080p/60Hz, supporting varied I/O data mapping, suited to not only TV applications but also projector and security camera systems.

  • LVDS to LVCMOS Conversion
  • 5ch LVDS 2ports (Dual Link) input
     945Mbps/ch
     Wide LVDS input skew margin Max. ±650ps
  • LVCMOS Parallel 2ports output
     67bit/2pixel
     270Mpixel/sec. (Max. Clock Freq. 135MHz)
     TTL Clock output timing programmable
    Data mapping selectable
  • Package:LQFP144
  • Power Supply:3.3V
  • Operating Temperature:-40 to 85℃
  • Recommended Tx:
     THC63LVD827
     THC63LVD823B
     THC63LVD1023B
