THCV244A

Overview

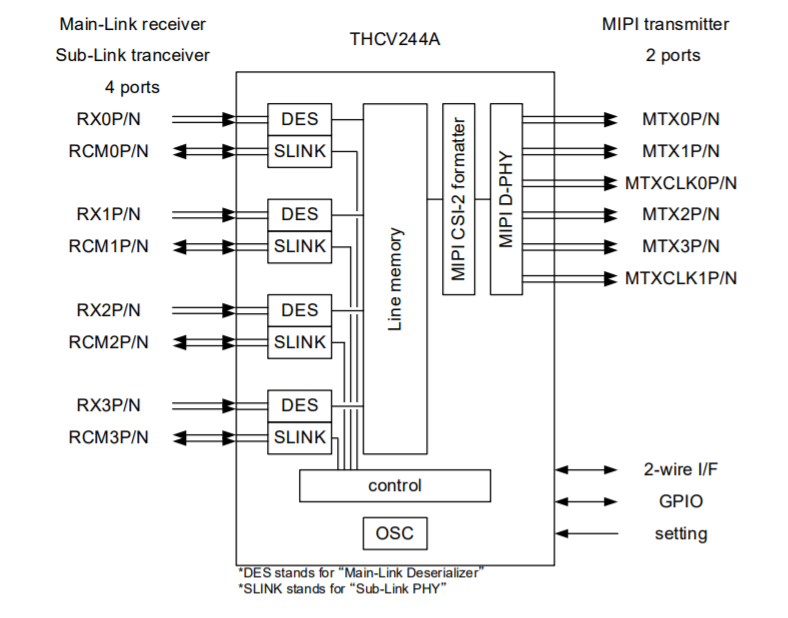

The THCV241A - THCV244A SerDes Chipset provides long distance and high speed image data link solution for MIPI® CSI-2, camera serial interface. It has high speed image data channel and low speed bidirectional control channel over the link. The high speed image data link are designed to support up to 1080p30 Quad camera image signal with twisted pair or coaxial cables. The bidirectional control link supports to communicate with I2C/GPIO.

  • For 4 camera (1080p 30fps 16bit) system
  • For 4 camera (720p 60fps 16bit) system
  • V-by-One® HS to MIPI® CSI-2 convertion
  • V-by-One®HS input
    Supports up to 4.0Gbps(effective rate 3.2Gbps)
    Supports 1,2,3 or 4 lanes
  • MIPI® CSI-2 output
    Supports up to 1.2Gbps/lane
    Supports 1,2 or 4 lane
  • Power Supply voltage: 1.7V-3.6V、1.1V-1.3V
  • Bi-directional system control link with I2C/GPIO
  • Package:QFN64(9mm x 9mm)
  • Operating temp.:-40 to 105℃
  • Recommended Tx :
     THCV241A
     THCV231
     THCV235

  • Applications :
     Dash cam
     Medical camera
     Security camera
     Industrial camera
-“MIPI®” is a registered trademark of MIPI Alliance, Inc.
