Overview

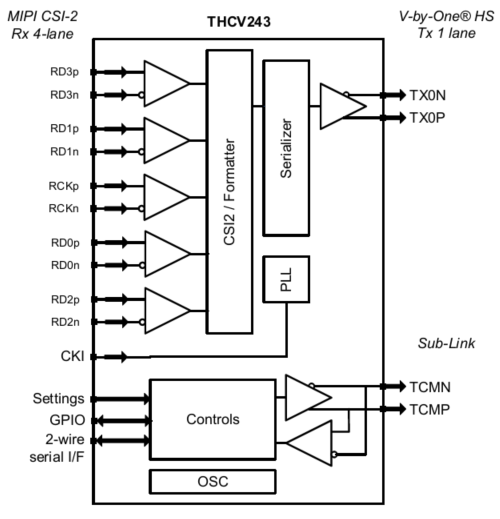

The THCV243 - THCV242 SerDes Chipset provides long distance and high speed image data link solution for MIPI® CSI-2, camera serial interface with a tiny 2.1mm x 2.9mm package. It has high speed image data channel and low speed bidirectional control channel over the link. The high speed image data link is designed to support 1080p60 image signal with an embedded clock over a single twisted pair or coaxial cable. The bidirectional control link supports to communicate with I2C/GPIO.

  • MIPI® CSI-2 to V-by-One® HS conversion
  • MIPI® CSI-2 input
    Supports up to 1.2Gbps/lane
    Supports 1,2 or 4 lanes
  • V-by-One® HS output
    Supports up to 4.0Gbps（effective rate 3.2Gbps）
    Supports 1 or 2 lanes
  • Embedded spread spectrum clock generator
  • Power Supply voltage : 1.7V-3.6V、1.1V-1.3V
  • Bi-directional system control link with I2C/GPIO
  • Package：CSP35 (2.1mm x 2.9mm)
  • Operating temp.：-40 to 105℃
  • Recommended Rx：
    　THCV242
    　THCV236
  • Application：
    　Dash cam
    　Security camera
    　Industrial camera
    　Endoscope
    　Wearable camera
-“MIPI®” is a registered trademark of MIPI Alliance, Inc.
