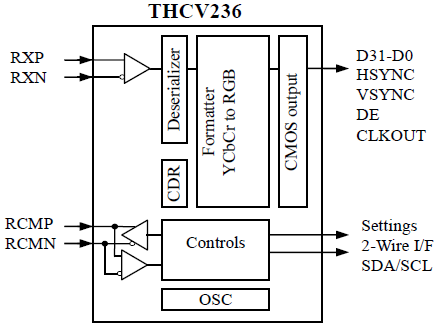

The THCV236 video data de-serializer provides long distance and high speed video data link solution for camera and display serial interface. It has high speed video data channel and low speed bidirectional control channel over the link. The high speed video data link is designed to support 1080p60 video signal with an embedded clock over a single twisted pair or coaxial cable. The bidirectional control link supports to communicate with I2C/UART/GPIO.

  • CML serial to LVCMOS parallel conversion
  • CML serial video input
     4.0Gbps(effective rate 3.2Gbps)/lane
  • LVCMOS parallel video output
     1.8-3.3V (JEDEC)
  • RGB⇔YCbCr color space conversion
  • Adaptive cable equalization
  • Single power supply:1.7V-3.6V
  • Bi-directional system control link with I2C/UART//GPIO
  • Package:QFN64
  • Operating temp:-40 to 105℃
  • Recommended Tx:
  • Application:
     Dash cam
     Security camera
LVCMOS Parallel Output CSC* Output Clock Frequency
YCbCr4:2:2 8/10/12/16bit
24 to 160MHz
YCbCr4:2:2 20bit - 10 to 133MHz
YCbCr4:4:4 24bit - 7.5 to 100MHz
YCbCr4:4:4 30bit - 6 to 80MHz
RGB 18bit (6bpc) -
10 to 133MHz
24 to 160MHz
RGB 24bit (8bpc)
7.5 to 100MHz
24 to 160MHz
RGB 30bit (10bpc)
6 to 80MHz
8 to 160MHz
 CSC* : Color Space Conversion(irreversible conversion)
