InterfaceV-by-One® HSTHCV241A-P
Overview

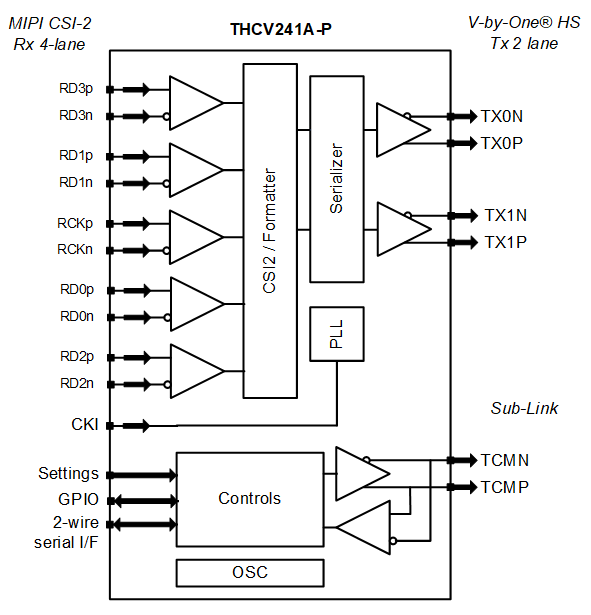

The THCV241A-P - THCV242-P SerDes Chipset provides long distance and high speed image data link solution for MIPI® CSI-2, camera serial interface. It has high speed image data channel and low speed bidirectional control channel over the link. The high speed image data link is designed to support image signal up to 4K UHD (8-mega pixel) 60fps RAW10. The bidirectional control link supports to communicate with I2C/GPIO.
- 4K UHD (8-mega pixel) 60fps RAW10
- MIPI® CSI-2 to V-by-One® HS conversion
- MIPI® CSI-2 input
Supports up to 1.5Gbps/lane
Supports 1,2 or 4 lanes - V-by-One® HS output
Supports up to 4.0Gbps(effective rate 3.2Gbps)
Supports 1 or 2 lanes - Embedded spread spectrum clock generator
- Power Supply voltage : 1.7V-3.6V、1.1V-1.3V
- Bi-directional system control link with I2C/GPIO
- Distribution(Replication) mode
- Package:QFN40 (5mm x 5mm)
- Operating temp.:-40 to 105℃
- Recommended Rx:
THCV242A-P - Application:
Endoscope
Security camera
Industrial camera
Dash cam
