THC63LVDR84B

Overview

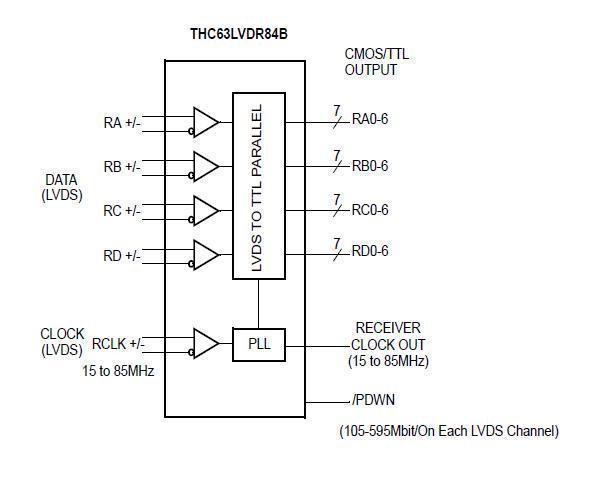

The THC63LVDR84B receiver converts the four LVDS data streams back into 24bits of LVCMOS data with wide VCC range(2.5 to 3.6V) and rising edge clock, suited to not only mid-sized LCD panels but also security camera systems, multi-function Printers, and tablet devices.

  • LVDS to LVCMOS Conversion
  • 4chs LVDS input
     595Mbps/ch
     LVDS input skew margin ±400ps
  • TTL/CMOS Parallel output
     28bit/pixel
     Clock Freq. 15 to 85MHz at 3.3V
     based on Rising edge
  • Power Supply:3.3V
    ※2.5 to 3.0V available less than 70Mpixel/sec.
  • Package:TSSOP56
  • Operating Temperature:-10 to 70℃
  • Recommended Tx:
     THC63LVDM83D
     THC63LVDM87
