THCV2911BNEW

Summary

THCV2911B is a re-driver with signal conditioning for V-by-one🄬 HS. The device performs receive equalization to compensate for channel loss, allowing maximum flexibility for PCB design and cable reach.

Features

  • Linear Redriver for seamless support of V-by-One HS Adaptive Equalizer
  • V-by-One🄬 HS input/output
    - Up to 4.0Gbps(effective rate 3.2Gbps)/lane
  • Linear Equalization :+10.6dB@2GHz
  • Power Supply:3.3V
  • Package: QFN30 (2.5mm x 4.5mm)
  • Operating temp. : -40 to 105℃
  • Combined with,
    - THCV family(V-by-One🄬 HS)
    - FPGA・SoC・ASIC(Integrated V-by-One🄬 HS)
  • Application
    - Degital Signage
    - Interactive Whiteboard
    - Printer
    - Surveillance Camera
    - Industrial Camera
    - Medical Camera
    - Active Cable

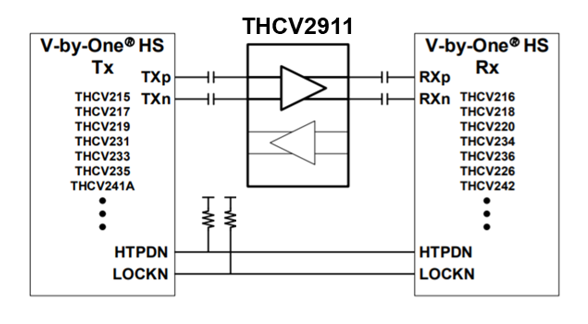

Block Diagram
