InterfaceV-by-One® HSTHCV353-Q
Overview

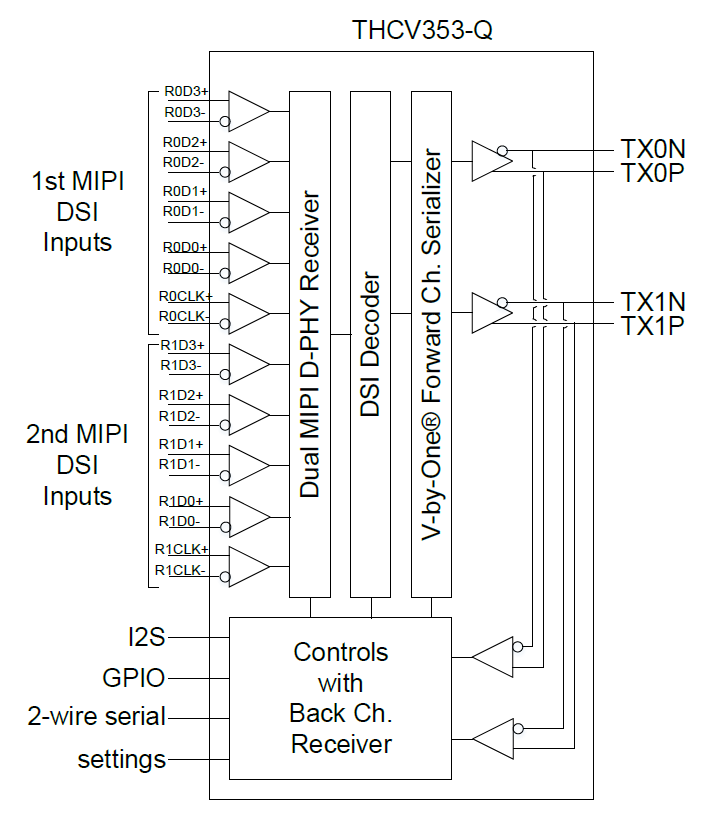

The THCV353-Q is a transmitter IC that is designed to support video data conversion of the MIPI DSI output from a graphic processor, to V-by-One🄬 HS / V-by-One🄬 HSⅡsignals.
It can send 720p 60fps 24bit / 1080p 60fps 24bit uncompressed video data through the V-by-One🄬HSⅡsignal by a pair / two pairs of twisted pair cables, or a single coaxial cable.
The THCV353-Q is capable of bidirectional control communication containing the signals of I2S, 2-wire serial and GPIO signals which enables touch panel control.
- MIPI DSI to V-by-One🄬 HSⅡconversion
- MIPI DSI input
Supports up to 1.5 Gbps/lane
Dual ports
RGB888, RGB666, RGB565, YCbCr4:2:2 - V-by-One🄬HSⅡoutput
Supports up to 4 Gbps/lane
Supports 1 or 2 lanes
Single link : Supports up to 116 MHz Pixel Clock
Dual link : Supports up to 232 MHz Pixel Clock - Video signal splitting for dual displays
- Built-in signal transmission quality monitor (Eye Monitor)
- Power supply voltage : 1.8 V-3.3 V typ, 1.2 V typ.
- Supports I2S / I2C / GPIO (up to 14 pins)
- Back Ch. GPIO supports up to 120 kbps
- 2-wire serial supports up to 1 Mbps
- Package:QFN64(9mm x 9mm)with Exposed Pad
- Operating temp.:-40 to 105℃ (AEC-Q100 Grade2 compatible)
