InterfaceV-by-One® HSTHCV334-Q
Overview

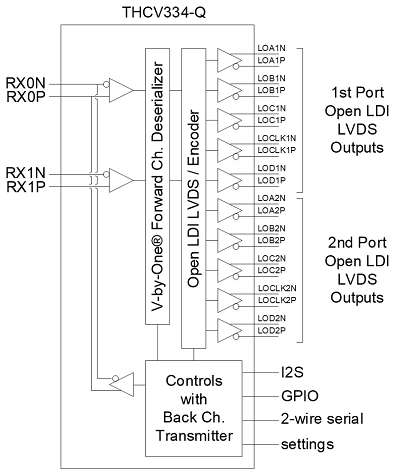

The THCV334-Q is designed to support video data conversion formV-by-One® HS / V-by-One® HSⅡinput signals to LVDS signals.
It has V-by-One® HSⅡcan recieve 720p60fps24bit/1080p60fps24bit uncompressed video data from a pair/two pair of twisted pair cables or a single coaxial cable.
THCV334-Q is capable of bidirectional control including I2S / I2C / GPIO signals through V-by-One® HSⅡsignals, and touch panel control can be realized.
- V-by-One® HsⅡto LVDSconversion
- V-by-One® HSⅡinput
Supports up to 4Gbps/lane
Supports 1 or 2 lane - Open-LDI(LVDS) output
RGB 18bit or RGB 24bit - Embedded signal transmission quality(Eye monitor)
- Power supply voltage
IO: 1.8V-3.3V typ.
Analog: 1.2V typ.
LVDS: 3.3V typ. - Support I2S / I2C / GPIO
- Back Ch. GPIO supports up to 120kbps
- Back Ch. 2-wire serial supports up to 1Mbps
- Package：QFN64（9mm x 9mm）with Exposed Pad
- Operating temp.：-40 to 105℃
| V-by-One® HSII Input | LVDS Data Output | LVDS Input Clock Frequency |
|---|---|---|
| 1Lane | Single (1port) | 10MHz to 109MHz |
| 1Lane | Dual (2port) | 50MHz to 109MHz |
| 2Lane | Single (1port) | 50MHz to 170MHz |
| 2Lane | Dual (2port) | 50MHz to 218MHz |
Go to FAQ for this product
Download documents
-
Data Sheet
