InterfaceV-by-One® HSTHCV333-Q
Overview
The THCV333-Q is designed to support video data conversion form LVDS input signals to V-by-One® HS / V-by-One®HSⅡsignals.
It has V-by-One® HSⅡcan recieve 720p60fps24bit/1080p60fps24bit uncompressed video data from a pair/two pair of twisted pair cables or a single coaxial cable.
THCV333-Q is capable of bidirectional control including I2S / I2C / GPIO signals through V-by-One® HSⅡsignals, and touch panel control can be realized.

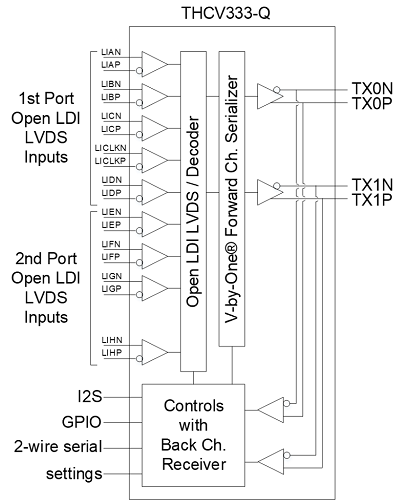

- LVDS to V-by-One® HSⅡconversion
- Open-LDI(LVDS) input
RGB 18bit or RGB 24bit - V-by-One® HSⅡoutput
Supports up to 3.75Gbps/lane
Supports 1 or 2 lane - Embedded signal transmission quality(Eye Monitor)
- Power supply voltage
IO: 1.8V-3.3V typ.
Analog: 1.2V typ.
LVDS: 1.8V typ. - Support I2S / I2C / GPIO
- Back Ch. GPIO supports up to 120kbps
- Back Ch. 2-wire serial supports up to 1Mbps
- Package：QFN64（9mm x 9mm）with Exposed Pad
- Operating temp.：-40 to 105℃
| LVDS Data Input | V-by-One® HSII Output | LVDS Input Clock Frequency |
|---|---|---|
| Single (1port) | 1Lane | 10MHz to 109MHz |
| Single (1port) | 2Lane | 50MHz to 150MHz |
| Dual (2port) | 1Lane | 50MHz to 109MHz |
| Dual (2port) | 2Lane | 50MHz to 218MHz |
