Camera ProcessorImage Signal Processor
THine's Image Signal Processor, “ISP”, is a core device of camera systems. The ISP equips a high performance image signal processing engine developed by THine, and executes processes like demosaicing, noise reduction, auto exposure, auto focus, and auto white balance in high speed and high quality.
THine licenses GUI-based Camera Development Kit (CDK) to customers. Using the CDK, customers are able to customize functions and tune performance of the ISP. It enables customers to develop their camera systems easily, even without experiences in developing firmware. Among various candidates, customers can select the most suitable CMOS image sensor and camera module for their camera systems. This is another advantage of using CDK.
| Part Number | Datasheet | Design Guide | Description | Maximum Pixel | Maximum Pixel Rate | Sensor Interface | # of lane # of bit | Data format | Bitrate Clock Freq. | Host interface | # of lane # of bit | Data format | Bitrate Clock Freq. | Peripheral interface | Operating temperature | Package ball pitch | Package size [mm] |
Buy Chip1stop |
Buy Digi-key |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| THP7312 BGA |  |
- | Camera processor which provides high performance image signal processing and camera control functions |
16Mp | 300Mp/s | MIPI CSI-2 LVCMOS parallel |
4lane 12bit |
RAW10 RAW12 |
1Gbps/lane 165MHz |
MIPI CSI-2 LVCMOS |
4lane 16bit |
YUV422, YUV420, RAW8 or Jpeg |
1Gbps/lane 165MHz |
I2C, SPI, GPIO, UART, JTAG, PWM, etc |
-40 to 85 | BGA81 0.8 mm |
8.0 x 8.0 x 1.11 | - | Buy |
| THP7312 WLCSP | |
- | Camera processor which provides high performance image signal processing and camera control functions |
16Mp | 300Mp/s | MIPI CSI-2 LVCMOS |
4lane 12bit |
RAW10 RAW12 |
1Gbps/lane 165MHz |
MIPI CSI-2 LVCMOS |
4lane 16bit |
YUV422, YUV420, RAW8 or Jpeg |
1Gbps/lane 165MHz |
I2C, SPI, GPIO, UART, JTAG, PWM, etc |
-40 to 85 | WLCSP81 0.4 mm |
3.960 x 3.937 x 0.615 | - | - |
| THP7312-P BGA | |
- | Camera processor which provides high performance image signal processing and camera control functions |
16Mp | 300Mp/s | MIPI CSI-2 LVCMOS |
4lane 12bit |
RAW10 RAW12 |
1Gbps/lane 165MHz |
MIPI CSI-2 LVCMOS |
4lane 16bit |
YUV422, YUV420, RAW8 or Jpeg |
1.2Gbps/lane 165MHz |
I2C, SPI, GPIO, UART, JTAG, PWM, etc |
-40 to 85 | BGA81 0.8 mm |
8.0 x 8.0 x 1.11 | - | - |
| THP7312-P WLCSP | |
- | Camera processor which provides high performance image signal processing and camera control functions |
16Mp | 300Mp/s | MIPI CSI-2 LVCMOS |
4lane 12bit |
RAW10 RAW12 |
1Gbps/lane 165MHz |
MIPI CSI-2 LVCMOS |
4lane 16bit |
YUV422, YUV420, RAW8 or Jpeg |
1.2Gbps/lane 165MHz |
I2C, SPI, GPIO, UART, JTAG, PWM, etc |
-40 to 85 | WLCSP81 0.4 mm |
3.960 x 3.937 x 0.615 | - | - |
*“MIPI®” is a registered trademark of MIPI Alliance, Inc.
*The product introduced on this page is RoHS (2011/65/EU) compliant.

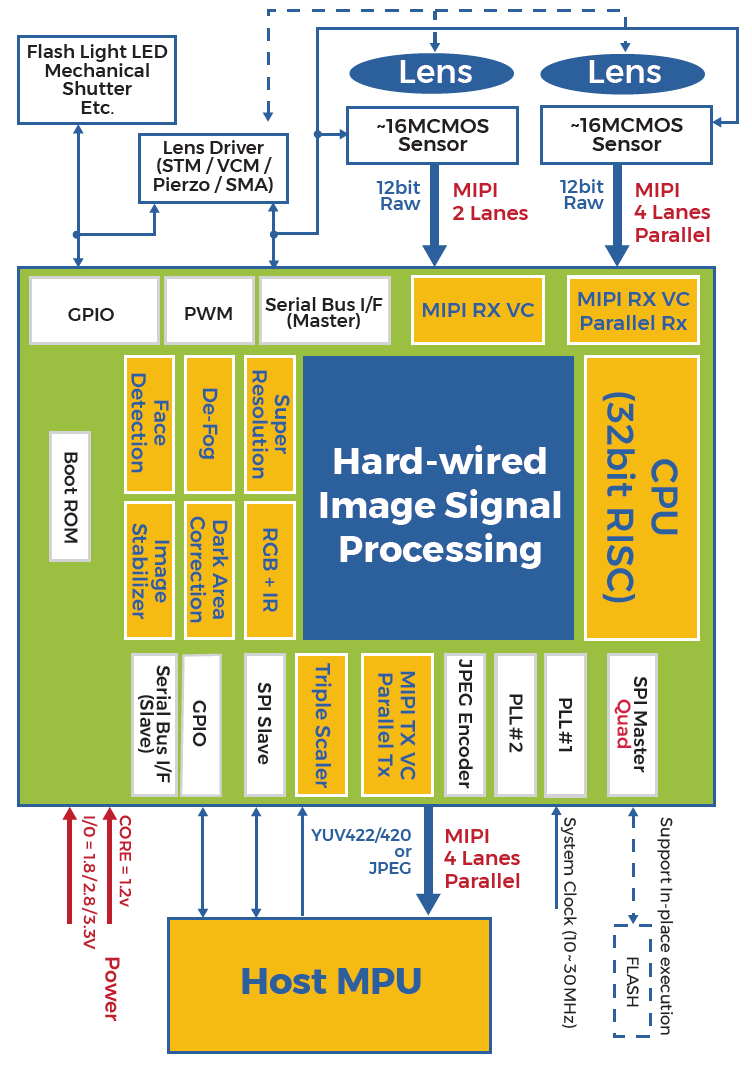

Features
◆High Image Quality〇Advanced noise reduction
〇Advanced edge enhancement
◆Correction
〇Black level correction
〇Defective pixel correction with auto detection
〇Static dust correction
〇Black shading correction
〇Lens shading correction
〇Gamma correction
〇Advanced dark area correction
〇Color correction
・12-axis Chroma & Hue correction
・Chroma & Hue correction of specified region in color space
・Memory color correction
〇De-mosaic
◆3A control
〇Auto exposure adjustment
〇Auto focus control
〇Auto white balance adjustment
◆Real-time, high speed, zero shutter lag
〇Image processing frequency: 300MHz
〇Processing up to 15fps for 16M pixel, 20fps for 13M pixel, 30fps for 8M pixel, 60fps for FHD pixel images
・Pipeline processing with dedicated H/W engine
・One pixel per clock processing throughout for the sensor pixel data by implementing enough line memories for each processing block.
〇Zero shutter lag
・MIPI VC/DT interleaving
◆Flexibility (Still, Preview, Thumbnail)
〇Output still, preview, and thumbnail simultaneously
・Simultaneous generation of still, preview, thumbnail images by triple resizer
・Super resolution
・MIPI VC/DT interleaving
◆User selectable functions
〇Face detection
〇Privacy mask
〇Advanced movie anti shaker(digital image stabilizer)
〇Flicker cancel
〇Scene detection
〇Auto fog detection
〇De-fog
〇Horizontal mirror
〇Special effects
・Monochrome, Sepia, Reverse, Rich Color, Watercolor, Wild Monochrome, Smart Sepia, Blue Man, EmbossPart Color, Pin Hole, Soft Focus, Miniature
◆Adaptable to new type sensor (special purpose CIS support)
〇Simultaneous processing of RGB and IR image
〇Alternative row HDR image data processing
〇WDR image data processing
◆Stepping and servo motor control
〇Motor driver control
・Two PWM control ports supported
〇Feedback information
・Interface to lens position detector output
・Counter of motor rotation number
◆Built in JPEG encoder
◆Built in Dual PLL
◆User oriented functions & Plentiful general purpose Input/Output interface
〇Adequate image processing and peripheral modules control
・Built-in 32-bit RISC MPU
・Integrates 128KB program memory
・Customizable firmware for each user applications
・Independently controlled 19 GPIO Ports
〇Strobe light control
〇Lens actuator control for AF, Iris and Zoom
〇Sensor control
〇Mechanical shutter control
Applications
・Medical Scopes・AR/VR Systems
・Barcode Scanners
・Vision Assistive Glasses
・Drones ・Surveillance Cameras
・Biometric Devices
・Body Cams
・USB Webcams
・Surgical Microscopes

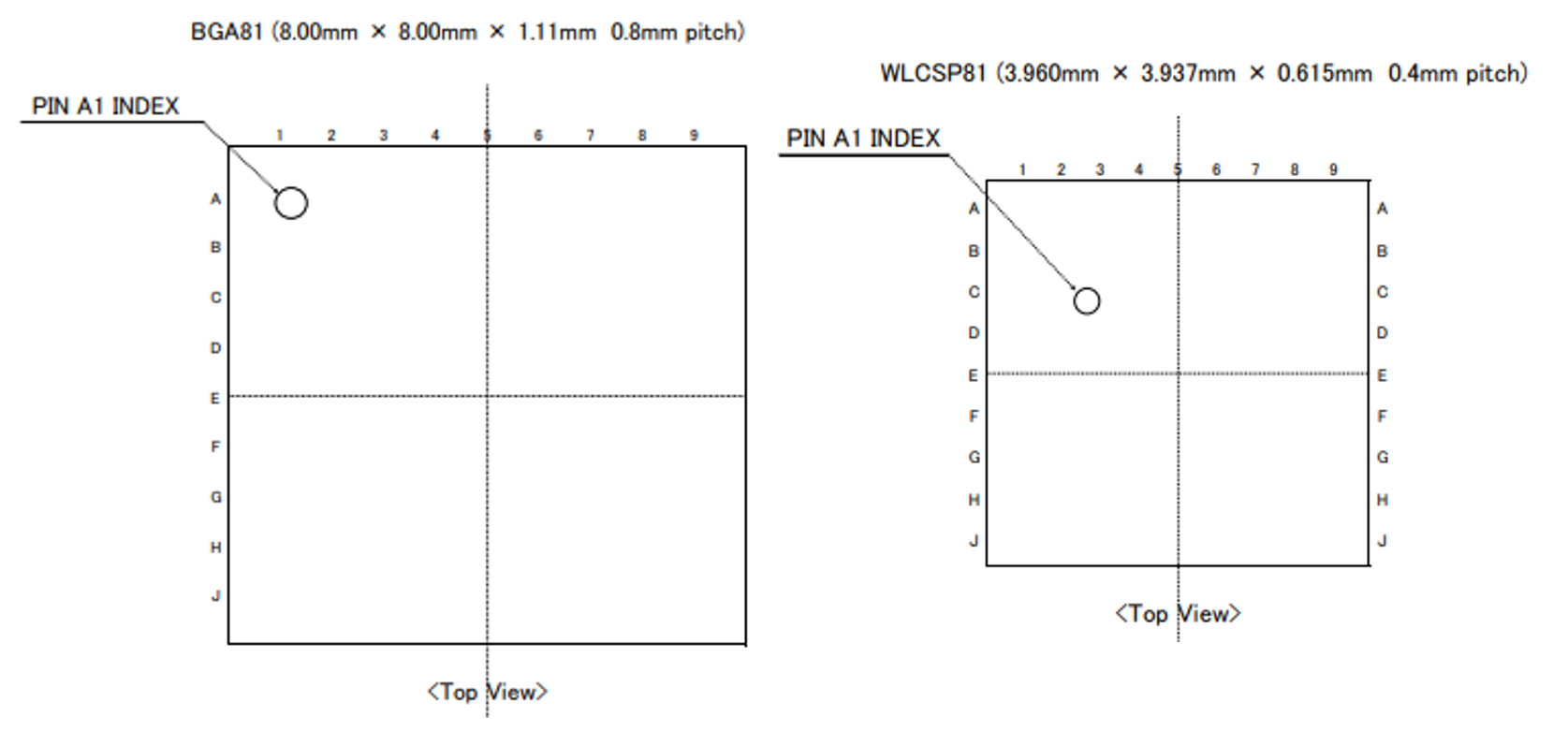

THP7312/THP7312-P BGA (LEFT) and THP7312/THP7312-P WLCSP (RIGHT)
