THine Electronics的ISP产品就是相机系统中枢的图像处理器。它装置有我们自行开发的图像处理HW管线，能高速执行去马赛克、降噪、Auto Exposure、Auto Focus、Auto White Balance 等处理。

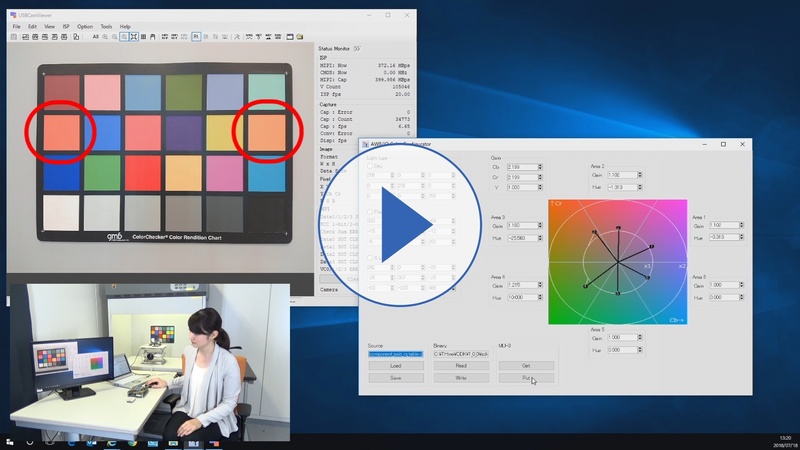

只要通过License合约的方式，就可以取得以GUI为基础的相机系统开发工具CDK（ Camera Development Kit）。即使是在软件开发上没有经验的客户也能直观地利用ISP内藏制成运行时所需的固件。
通过使用CDK，客户可在自身的相机系统里选用最合适的CMOS Sensor・相机模组。
| Part Number | Datasheet | Design Guide | Description | Maximum Pixel | Maximum Pixel Rate | Sensor Interface | # of lane # of bit | Data format | Bitrate Clock Freq. | Host interface | # of lane # of bit | Data format | Bitrate Clock Freq. | Peripheral interface | Operating temperature | Package ball pitch | Package size [mm] |
购买 Chip1stop |
购买 Digi-key |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| THP7312 BGA | - | - | Camera processor which provides high performance image signal processing and camera control functions | 16M Pixels | 300M pixel/sec | MIPI CSI-2 LVCMOS parallel |
4lane 12bit |
RAW8, 10 or 12 RAW8, 10 or 12 |
1Gbps/lane 165MHz |
MIPI CSI-2 LVCMOS parallel |
4lane 16bit |
RAW8, YUV422, UV420 or Jpeg RAW8, YUV422, UV420 or Jpeg |
1Gbps/lane 165MHz |
I2C master/slave, SPI master(single & quad)/slave, UART, JTAG(debug), GPIO, PWM, clock, reset, frame sync, flash control, etc... | -40 to 85 degree | BGA81 0.8 mm |
8.0 x 8.0 x 1.11 mm | - | - |
| THP7312 WLCSP | - | - | Camera processor which provides high performance image signal processing and camera control functions | 16M Pixels | 300M pixel/sec | MIPI CSI-2 LVCMOS parallel |
4lane 12bit |
RAW8, 10 or 12 RAW8, 10 or 12 |
1Gbps/lane 165MHz |
MIPI CSI-2 LVCMOS parallel |
4lane 16bit |
RAW8, YUV422, UV420 or Jpeg RAW8, YUV422, UV420 or Jpeg |
1Gbps/lane 165MHz |
I2C master/slave, SPI master(single & quad)/slave, UART, JTAG(debug), GPIO, PWM, clock, reset, frame sync, flash control, etc... | -40 to 85 degree | WLCSP81 0.4 mm |
3.960 x 3.937 x 0.615 mm | - | - |
| THP7312-P BGA |  |
- | Camera processor which provides high performance image signal processing and camera control functions | 16M Pixels | 300M pixel/sec | MIPI CSI-2 LVCMOS parallel |
4lane 12bit |
RAW8, 10 or 12 RAW8, 10 or 12 |
1Gbps/lane 165MHz |
MIPI CSI-2 LVCMOS parallel |
4lane 16bit |
RAW8, YUV422, UV420 or Jpeg RAW8, YUV422, UV420 or Jpeg |
1.2Gbps/lane 165MHz |
I2C master/slave, SPI master(single & quad)/slave, UART, JTAG(debug), GPIO, PWM, clock, reset, frame sync, flash control, etc... | -40 to 85 degree | BGA81 0.8 mm |
8.0 x 8.0 x 1.11 mm | - | - |
| THP7312-P WLCSP | |
- | Camera processor which provides high performance image signal processing and camera control functions | 16M Pixels | 300M pixel/sec | MIPI CSI-2 LVCMOS parallel |
4lane 12bit |
RAW8, 10 or 12 RAW8, 10 or 12 |
1Gbps/lane 165MHz |
MIPI CSI-2 LVCMOS parallel |
4lane 16bit |
RAW8, YUV422, UV420 or Jpeg RAW8, YUV422, UV420 or Jpeg |
1.2Gbps/lane 165MHz |
I2C master/slave, SPI master(single & quad)/slave, UART, JTAG(debug), GPIO, PWM, clock, reset, frame sync, flash control, etc... | -40 to 85 degree | WLCSP81 0.4 mm |
3.960 x 3.937 x 0.615 mm | - | - |
※「MIPI®」是MIPI Alliance, Inc. 的注册商标。
※以上产品已经符合欧洲RoHS标准（2011/65 /EU）。
关于环境规范的资料（MSDS、ICP分析报告、包含纠纷矿物质调查结果的材料等）及产品规格书（封装、包装等）等资料请向我公司的各个销售分公司进行咨询。
