LED DriverRGB LED driversTHL3512
Overview

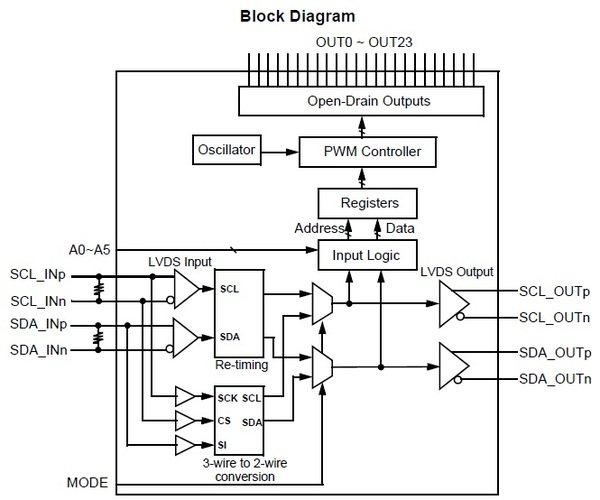

The THL3512 is an LED driver with 24 channel opendrain outputs.The embedded oscillator and PWM controller individually generates 256-step brightness set by the dedicated registers for each channel.The serial interface of 2-pair LVDS lines(clock and data) features high-level noise tolerance, high-speed, and long-distance transmission.The LVDS allowing cascaded and multidrop connection offers the maximum flexibility for designers to place and connect LED drivers.The simple and one-way communication protocol is easily-controlled and requires less CPU resources.
- Open-Drain Output: 24 channels
- Output Sink Current: up to 100mA/ch
- Output voltage: up to 40V
- Individual Brightness Control: 256 steps
- Output disable/enable
- 2-pair Serial LVDS Input or 3-wire Serial CMOS Input up to 10Mbps
- Bridge Function Converting 3-wire Serial CMOS Input to 2-pair Serial LVDS Output
- Repeater function of 2-pair Serial LVDS Input / Output with Waveform and Timing Correction
- Device Address Selection up to 62 addresses
- General call to all devices
- Protection Circuits UVLO, Overcurrent Protection, Thermal Shutdown
- Supply Voltage: 3.0～5.5V
- Package: QFN 48-pin Exposed Pad
