THCX222R05 is a multi-protocol re-driver and a signal conditioner corresponding to various interfaces like SLVS-EC, USB3 Vision, USB3.1.
THCX222R05 features a continuous time linear equalizer (CTLE) to compensate a signal integrity degraded by insertion loss or inter-symbol interference (ISI).
It enables users to design PCB layout easily and develop a longer cable.

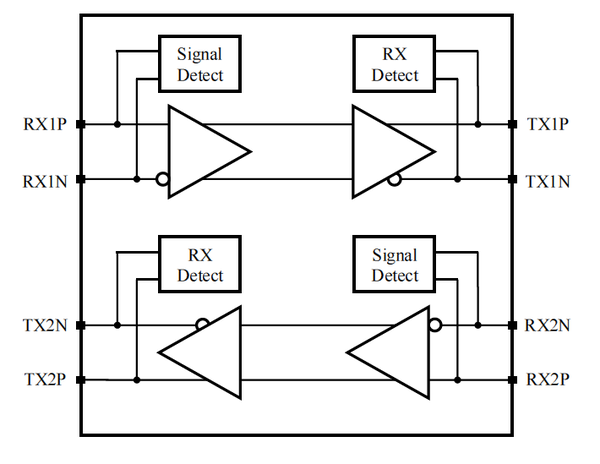

  • 2 Circuits in 1 Package
  • Equalization
    Adjustable Linear Equalizer (CTLE) in 16 steps
    Adjustable DC gain in 8 steps
  • Adjustable Voltage Output Swing Linear Range : 1200mVp-p at maximum
  • Supply Voltage : 3.3V
  • Receiver and LFPS Detect at USB3.1
  • Package : QFN30 (2.5mm x 4.5mm)
  • Applications:
    USB3 Vision
    USB3.1 Gen1
