Optical NetworkPCIe (VCSEL Driver/TIA) Developing THLD6481 [Under Development]
Overview
This product is under development.

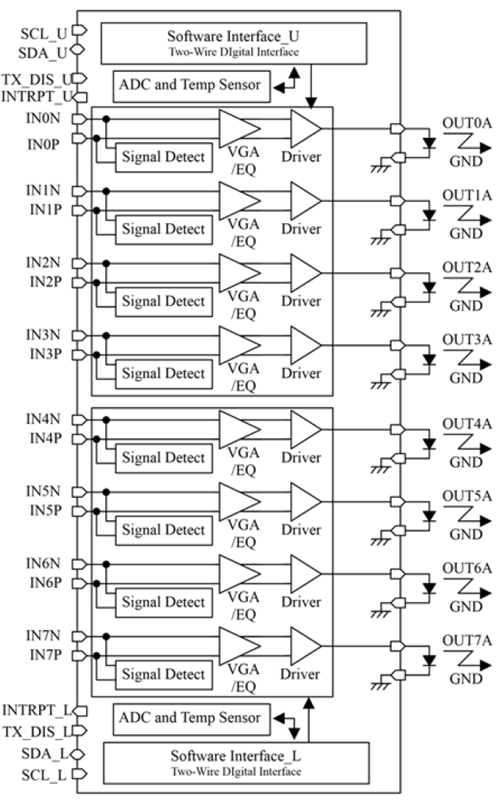

The THLD6481 Octal 64 GT/s PCIe 6.0 VCSEL Driver with ZERO EYE SKEW® is a 32 GBaud linear transmitter.
Each VCSEL driver features eight data channels, and each channel is equipped with a pre-distortion function to compensate for eye skew..
The driver measures 3600 μm x 3800 μm, with data outputs spaced on 250 μm centers.
The small size, excellent linearity (high RLM), low-power, compatibility with PCIe electrical idle, link training, and ZERO EYE SKEW® make the THLD6481 ideal for PCIe active optical cables.
- Octal 32 GBaud PAM4/NRZ VCSEL Driver
- ZERO EYE SKEW®
- Programmable bias and modulation current
- Optional equalization
- Support PCIe 6.0 Low Power States
- Product Type：Die
- Applications：
Linear Optical Links
Near-Packaged Optical PCIe Engine
64GT/s PCIe 6.0 Optical Cable
