With THine's MIPI interface IC,
the camera transmission distance is
up to 15 meters!
*The above is based on the use of high quality cables with shielding. Actual performance may vary depending on the operating environment.
Three needs
for compact, high-resolution camerasthat have emerged with the changing times
-
Needs that are difficult to inspect but want to inspect.
With today's increasing demand for greater safety, inspects hard-to-inspect areas such as airplane fuselages and highway tunnels with high resolution .
-
Needs to send high-resolution images of teleworkers with a small camera on a PC.
The Corona disaster triggered a surge in demand for cameras for teleworkers, who want to send high-resolution images.
-
Needs for precise inspection of high-density mounted components.
As smart products and other sophisticated products become increasingly miniaturized, it is essential to inspect high-density mounted component boards during shipment inspections.
Most of the output interfaces for CMOS image sensors mounted on small, high-resolution cameras used in the above systems are "MIPI(R) CSI-2. However, MIPI(R) CSI-2, which was originally developed for mobile applications, has the weakness of "short transmission distance (about 30 cm)," making it unsuitable for applications where there is a need to extend the distance.
that solves MIPI issues
Three Strengths
-
-
Application-specific and design verification kits availableWe offer a variety of kits optimized for your verification environment, including an starter kit for developing cameras embedded in system devices and a plug and play kit for extending the distance of Raspberry Pi cameras. Feel free to use them for simple preliminary verification.
MIPI Camera SerDes Starter Kit for an Embedded Camera System in Long Reach
Cable Extension Kit for Raspberry Pi Camera Applications
-

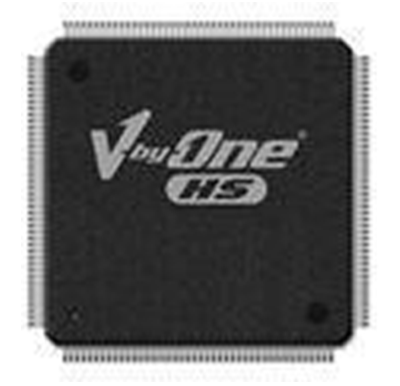

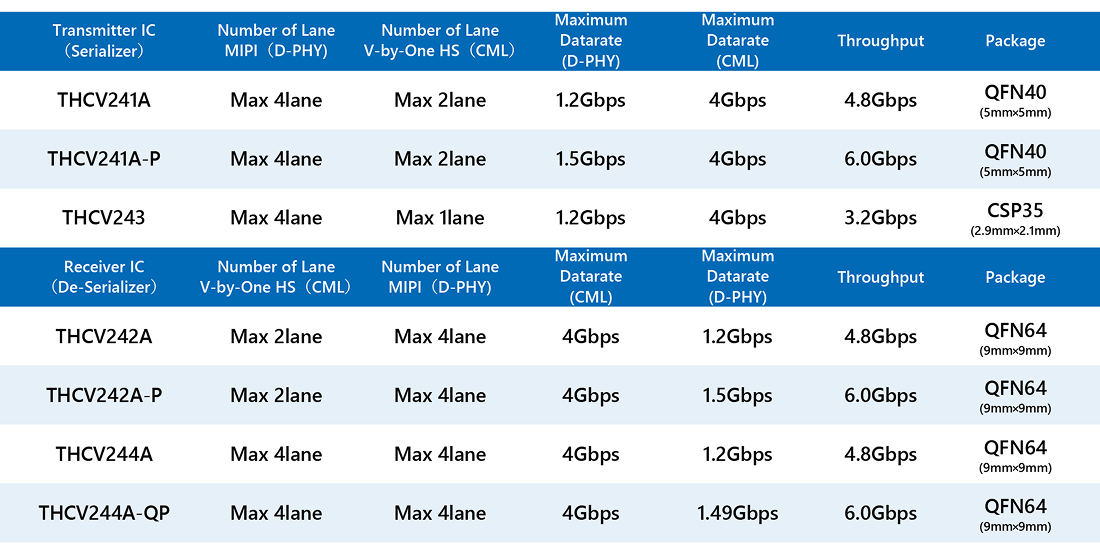

Extensive IC lineup7 types of "MIPI®" x "V-by-One® HS" interface IC products lineup according to usage such as transmission speed and number of lanes!
Related Information
Related Products
Contact us about any questions you may have about camera transmission.
We are committed to support every customer regardless of the project size!
For ASEAN/China/Taiwan/Korea/Japan, please contact us here.
Contact THine ElectronicsFor the other countries, please contact us here.
Contact THine Solutions

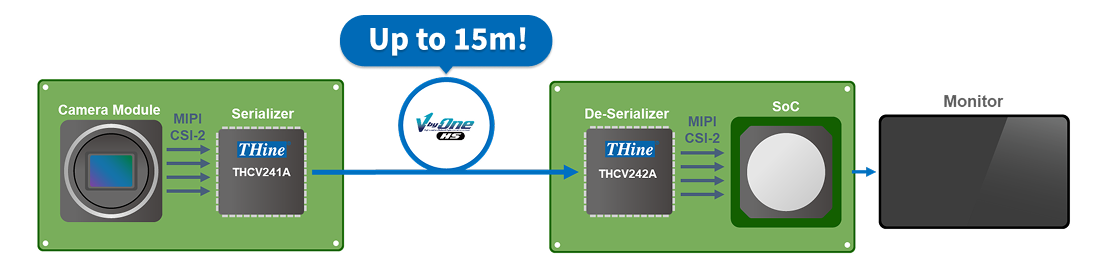

V-by-One® HS, an interface technology that is a core competence of THine Electronics, Inc. can extend the transmission distance of 4K MIPI signals up to 15 meters with high resolution! It is being increasingly adopted in a variety of camera applications.
