THEIA-CAM for Linux

・对应4K@30fps、1080p@60fps
・对应高速位相差检出自动对焦(PDAF)
・HW与SW同个包装,能立刻开始动画的显示
・对应各种NXP i.MX 8M Family EVK
・从试作到量产可多幅对应





Image Resolutions


(注)硬件不动,升级固件,通过上面图示的尺寸x帧滞后x格式的组合,在 i.MX 8M family platform 的基础上、就如下面所示,对应更多像素、或者 i.MX nano 以及 i.MX plus 的计划。




Auto Focus Modes

・One Shot Contrast AF
・Continuous Contrast AF
・One Shot Contrast and PDAF Hybrid AF
・Continuous Contrast and PDAF Hybrid AF


V4L2 Image Functions

・Size and Frame Rates | 1080p30, 1080p60, 3M at 30fps, 4K2K at 30fps, 13MP at 20fps
・Focus Mode | Auto or Manual
・Auto Focus Method | Contrast or PDAF Hybrid
・Focus Position | Infinity to 80mm
・Brightness | 21 steps
・Contrast | 21 steps
・Saturation | 32 steps
・Sharpness | 32 steps
・Noise Reduction | Auto or Manual
・Noise Reduction Level | 11 steps
・Auto Exposure Bias | 13 steps from -6/3EV to +6/3EV
・Power Line Frequency (Flicker Cancellation) | 50Hz or 60Hz
・White Balance Mode | Auto or Manual
・Manual White Balance | x1 to x7.97 for Red and Blue
・Rotation | 0 or 180 degrees
・Low Light Exposure Mode | Exposure Time or Fixed Frame Rate



立刻就能使用

1,将SD card image写入SD card

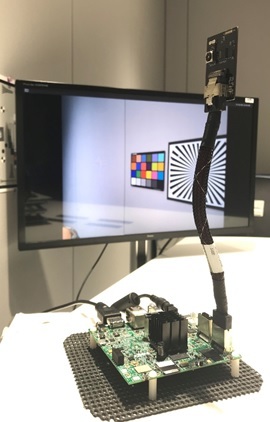

2,3,将THSCM101连接到i.MX 8M Family的EVK上
4,接通i.MX 8M Family EVK的电源
5,显示基于V4L2 camera command reference manual的图像




各种适用方法

・作为最终产品的部件
・作为产品开始的Proof of Concept
・作为参考设计
・通过Camera Development Kit (CDK)完成客户定制


Document and softwareOPEN

关于本产品的技术FAQ请见此处

FAQ
