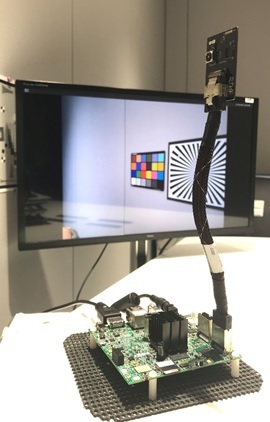

THEIA-CAM for Linux

・對應4K@30fps、1080p@60fps
・對應高速相位差檢測自動對焦(PDAF)
・HW與SW同個包裝,能立刻顯示動畫
・對應各種NXP i.MX 8M Family EVK
・從試作到量產皆可廣泛對應





Image Resolutions


(注)硬體不變,升級軟體,通過上圖的尺寸 x 幀率 x 格式的组合,加上 i.MX 8M family platform ,就如下面所示,計劃對應更多畫素、或者 i.MX nano 以及 i.MX plus 。




Auto Focus Modes

・One Shot Contrast AF
・Continuous Contrast AF
・One Shot Contrast and PDAF Hybrid AF
・Continuous Contrast and PDAF Hybrid AF


V4L2 Image Functions

・Size and Frame Rates | 1080p30, 1080p60, 3M at 30fps, 4K2K at 30fps, 13MP at 20fps
・Focus Mode | Auto or Manual
・Auto Focus Method | Contrast or PDAF Hybrid
・Focus Position | Infinity to 80mm
・Brightness | 21 steps
・Contrast | 21 steps
・Saturation | 32 steps
・Sharpness | 32 steps
・Noise Reduction | Auto or Manual
・Noise Reduction Level | 11 steps
・Auto Exposure Bias | 13 steps from -6/3EV to +6/3EV
・Power Line Frequency (Flicker Cancellation) | 50Hz or 60Hz
・White Balance Mode | Auto or Manual
・Manual White Balance | x1 to x7.97 for Red and Blue
・Rotation | 0 or 180 degrees
・Low Light Exposure Mode | Exposure Time or Fixed Frame Rate

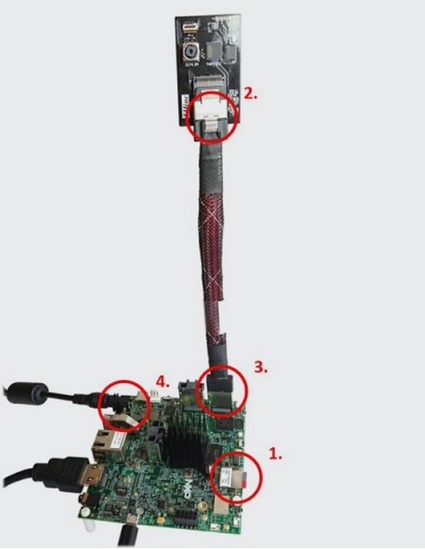

立刻就能使用

1,將SD card image寫入SD card
2,3,將THSCM101連接到i.MX 8M Family的EVK上
4,接通i.MX 8M Family EVK的電源
5,顯示基於V4L2 camera command reference manual的影像




多種活用方法

・ 作為最終產品的一部分
・ 作為產品啟動的概念證明
・ 作為參考設計
・ 使用Camera Development Kit (CDK)進行客戶定制
Document and softwareOPEN

製品相關的技術FAQ請按此

FAQ
