Kit SolutionsCamera SystemsTHSCU101
THEIA-CAM for UVC
・对应13MPixel, 4K@30fps, 1080p@60fps
・对应高速位相差检出自动对焦(PDAF)
・基于USB Video Class (UVC) 基准，只要有PC就能立刻显示动画
・从试作到量产可多幅对应

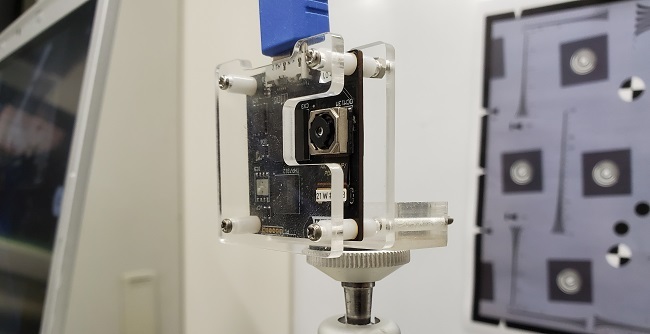

・方便组装的小型PCB 尺寸是3.5cm X 3.6cm
Image Resolutions
General UVC Functions
・Output Size and Frame Rate selection
・YUV422 or JPEG selection
Camera Control UVC Functions
・Focus, Auto
・Auto Exposure Mode
・Exposure Time (Absolute)
・Auto-Exposure Priority
・Focus (Absolute)
・Roll
Image Processing UVC Functions
・Brightness
・Contrast
・Hue
・Saturation
・Sharpness
・Gamma
・White Balance Auto
・White Balance Temperature
・Backlight compensation
・Manual Flicker Cancel
UVC Extension functions
・Exposure Compensation
・Flicker Cancel Priority
・Maximum Frame Rate
・Auto Focus Mode
・Noise Reduction Mode
・Document Mode
・Color Mode
・JPEG Q-Factor

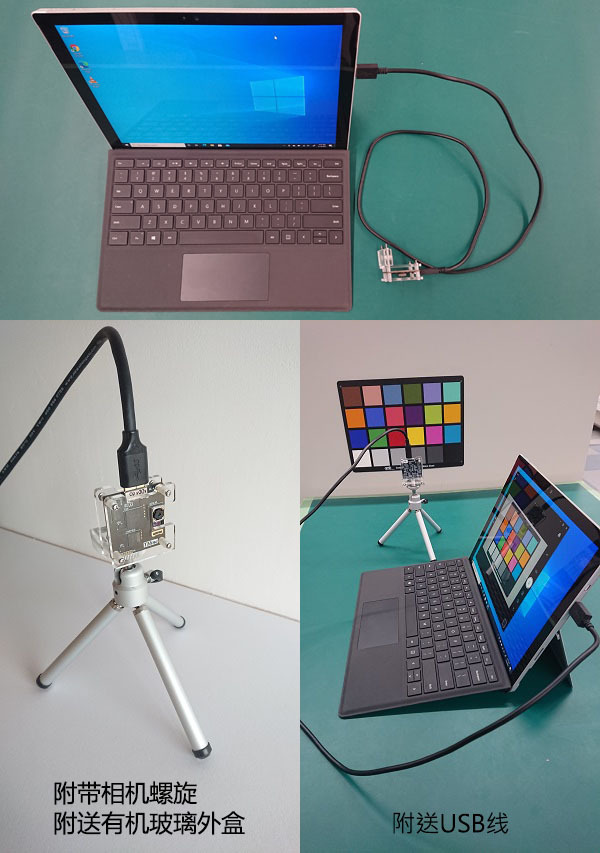

立刻就能使用
１，用附送的USBケーブル连接至PC
２，启动相机app
３，选择图像尺寸并显示
４，通过UVC Function 控制
５，此外还具有THSCU101扩张功能
※三脚架、PC、色表不附送
- Document and softwareOPEN
-
Quick Start Guide
Datasheet
Camera Extension Controller
Camera Extension Controller User Manual
THSCU101 Latest Firmware Binary (CX3 Firmware: 1.32 | THP7312 Firmware: 3.47)
THSCU101 Firmware Update User Manual
