THEIA-CAM for UVC

・對應13MPixel, 4K@30fps, 1080p@60fps
・對應高速相位差檢測自動對焦(PDAF)
・符合USB Video Class (UVC) ,只要有PC就能立即顯示動畫
・從試作到量產皆可廣泛對應
・方便組裝的小型PCB 尺寸是3.5cm X 3.6cm


Image Resolutions




General UVC Functions

・Output Size and Frame Rate selection
・YUV422 or JPEG selection


Camera Control UVC Functions

・Focus, Auto
・Auto Exposure Mode
・Exposure Time (Absolute)
・Auto-Exposure Priority
・Focus (Absolute)
・Roll


Image Processing UVC Functions

・Brightness
・Contrast
・Hue
・Saturation
・Sharpness
・Gamma
・White Balance Auto
・White Balance Temperature
・Backlight compensation
・Manual Flicker Cancel


UVC Extension functions

・Exposure Compensation
・Flicker Cancel Priority
・Maximum Frame Rate
・Auto Focus Mode
・Noise Reduction Mode
・Document Mode
・Color Mode
・JPEG Q-Factor

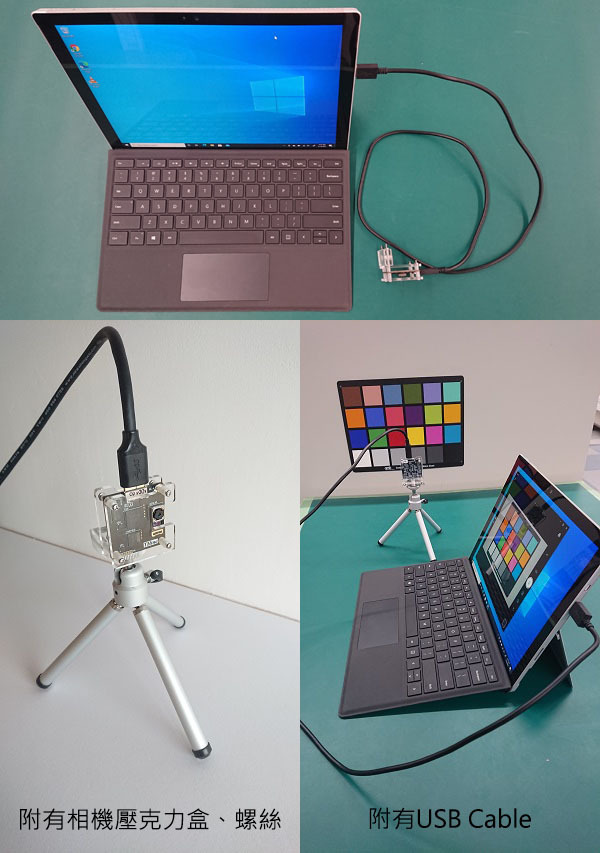

立刻就能使用

1,使用附送的USB Cable連接至PC
2,啟動相機app
3,選擇影像尺寸並顯示
4,透過UVC Function 控制
5,此外還具有THSCU101擴張功能


※不包含三腳架、PC、色卡

Document and softwareOPEN

製品相關的技術FAQ請按此

FAQ

樣品購入

從Digi-Key購買
