InterfaceLVDS

LVDS Serial Interface

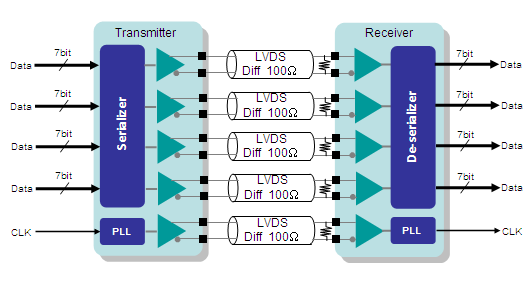

LVDS 기술은 TV를 비롯한 우리주변에서 흔히 볼수 있는 디지털 가전제품이나 보안카메라, 산업, 의료, 차량용 기기 등과 같은 여러 분야를 지탱해온 전송기술로서 사용되고 있습니다.
자인 일렉트로닉스에서는 일찍이 이 기술을 도입해 일본 반도체 메이커에서는 가장 빨리 LVDS 제품을 시장에 투입하였습니다. 당사의 LVDS 제품은 Jitter 특성, Skew 마진, 소비전력 등 특성에 뛰어나며, 다양한 어플리케이션 제품에서 사용이 가능합니다.

Serializer

Part Number Datasheet Design Guide DescriptionInputOutputData width
[bit per clock]
min. Clock
frequency
[MHz]
max. Clock
frequency
[MHz]
max. Total
Throughput
[Mbps]
max. Signaling rate
[Mbps/ch]
FeaturesSupply
voltage
Typ.[V]
Operating
temperature
range
[degree]
Package type
size [mm]
구매
Chip1stop
구매
Digi-key
THC63LVDM83D
- Parallel to LVDS Serializer 3.3V LVTTL, 2.5/1.8/1.2V CMOS
28bit
LVDS
4ch
28 8 160 4480 1120 EMI suppression by small-swing LVDS signals 3.3 0 to +70 TSSOP56
6.1 x 14
Buy Buy
THC63LVDM83D-Z
- Parallel to LVDS Serializer 3.3V LVTTL, 2.5/1.8/1.2V CMOS
28bit
LVDS
4ch
28 8 160 4480 1120 EMI suppression by small-swing LVDS signals 3.3 -40 to +105 TSSOP56
6.1 x 14
Buy Buy
THC63LVDM83E

Parallel to LVDS Serializer 3.3V LVTTL, 2.5/1.8/1.2V CMOS
28bit
LVDS
4ch
28 8 160 4480 1120 EMI suppression by small-swing LVDS signals CORE:3.3
IO:1.2/1.8/2.5/3.3
0 to +70 VFBGA49
5 x 5
Buy Buy
THC63LVDM87

Parallel to LVDS Serializer 3.3V LVTTL, 2.5/1.8V CMOS
28bit
LVDS
4ch
28 8 160 4320 1120 Ultra low power
EMI suppression by small-swing LVDS signals
CORE:1.8
IO:1.8/2.5/3.3
-40 to +85 VFBGA49
5 x 5
Buy Buy
THC63LVD823B
- Dual Port Paralle to LVDS Serializer 3.3V LVTTL, 1.2V CMOS
51bit
LVDS
4ch x 2port
51 10 160 4080 1120 EMI suppression by small-swing LVDS signals 3.3 -20 to +70 TQFP100
14 x 14
Buy Buy
THC63LVD827

Parallel to Dual PortLVDS Serializer 3.3V LVTTL, 2.5/1.8V CMOS
27bit
LVDS
4ch x 2port
27 8 174 4698 1218 Ultra low power
Single to dual pixel link conversion
EMI suppression by small-swing LVDS signals
Double edge input support
CORE:1.8
IO:1.8/2.5/3.3
-40 to +85 TFBGA72
7 x 7
Buy Buy
THC63LVD827-Z
- Parallel to Dual PortLVDS Serializer 3.3V LVTTL, 2.5/1.8V CMOS
27bit
LVDS
4ch x 2port
27 8 174 4698 1218 Ultra low power
Single to dual pixel link conversion
EMI suppression by small-swing LVDS signals
Double edge input support
CORE:1.8
IO:1.8/2.5/3.3
-40 to +105 TFBGA72
7 x 7
Buy Buy
THC63LVD103D
- Parallel to LVDS Serializer 3.3V LVTTL, 2.5/1.8/1.2V CMOS
35bit
LVDS
5ch
35 8 160 5600 1120 EMI suppression by small-swing LVDS signals 3.3 0 to +70 TQFP64
10 x 10
Buy Buy
THC63LVD1023B

Dual Port Paralle to LVDS Serializer 3.3V LVTTL, 1.2V CMOS
35bit x 2port
LVDS
5ch x 2port
70 10 160 5600 1120 Dual/Single pixel link conversion
Cross point port switching (Asynchronous mode)
Double edge data input support
EMI suppression by small-swing LVDS signals
3.3 -20 to +70 LQFP144
20 x 20
Buy Buy

De-Serializer

Part Number Datasheet Design Guide DescriptionInputOutputData width
[bit per clock]
min. Clock
frequency
[MHz]
max. Clock
frequency
[MHz]
max. Total
Throughput
[Mbps]
max. Signaling rate
[Mbps/ch]
FeaturesSupply
voltage
Typ.[V]
Operating
temperature
range
[degree]
Package type
size [mm]
구매
Chip1stop
구매
Digi-key
THC63LVDF84B
- LVDS to Parallel De-serializer LVDS
4ch
3.3V LVTTL
28bit
28 15 85 2380 595 Falling edge strobe output 3.3 -10 to +70 TSSOP56
6.1 x 14
Buy -
THC63LVDF84C

LVDS to Parallel De-serializer LVDS
4ch
LVTTL/CMOS
28bit
27 8 112 3024 784 Falling edge strobe output 3.3 -40 to +85 TSSOP56
6.1 x 14
Buy Buy
THC63LVDR84B
- LVDS to Parallel De-serializer LVDS
4ch
3.3V LVTTL
28bit
28 15 85 2380 595 Rising edge strobe output 3.3 -10 to +70 TSSOP56
6.1 x 14
Buy -
THC63LVDR84C

LVDS to Parallel De-serializer LVDS
4ch
3.3V LVTTL
28bit
28 8 112 3136 784 Rising edge strobe output 3.3 -40 to +85 TSSOP56
6.1 x 14
Buy Buy
THC63LVD104C
- LVDS to Parallel De-serializer LVDS
5ch
3.3V LVTTL
35bit
35 8 112 3920 784 - 3.3 -20 to +85 TQFP64
10 x 10
Buy Buy
THC63LVD1022
- Dual Port LVDS to Parallel De-selializer LVDS
5ch x 2port
3.3V LVTTL
33bit
33 20 75 2475 525 Dual to single pixel link conversion 3.3 0 to +85 TQFP100
14 x 14
Buy Buy
THC63LVD1024

Dual Port LVDS to Parallel De-selializer LVDS
10ch
3.3V LVTTL 67 8 150 9045 945 Dual/Single pixel link conversion
Double edge data output support
3.3 -40 to +85 LQFP144
20 x 20
Buy Buy

Repeater

Part Number Datasheet Design Guide DescriptionInputOutputData width
[bit per clock]
min. Clock
frequency
[MHz]
max. Clock
frequency
[MHz]
max. Total
Throughput
[Mbps]
max. Signaling rate
[Mbps/ch]
FeaturesSupply
voltage
Typ.[V]
Operating
temperature
range
[degree]
Package type
size [mm]
구매
Chip1stop
구매
Digi-key
THC63LVD1027

Dual Port LVDS Repeater LVDS
5ch x 2port
LVDS
5ch x 2port
35 20 135 5950 945 Dual/Single pixel link conversion
Distribution (duplication)
EMI suppression by small-swing LVDS signals
3.3 -40 to +85 TSSOP64
6.1 x 17
Buy Buy
THC63LVD1027D

Dual Port LVDS Repeater LVDS
5ch x 2port
LVDS
5ch x 2port
35 20 150 5950 1050 Dual/Single pixel link conversion
Distribution (duplication)
EMI suppression by small-swing LVDS signals
3.3 -40 to +105 TSSOP64
6.1 x 17
Buy -

Distributor

Part Number Datasheet Design Guide DescriptionInputOutputData width
[bit per clock]
min. Clock
frequency
[MHz]
max. Clock
frequency
[MHz]
max. Total
Throughput
[Mbps]
max. Signaling rate
[Mbps/ch]
FeaturesSupply
voltage
Typ.[V]
Operating
temperature
range
[degree]
Package type
size [mm]
구매
Chip1stop
구매
Digi-key
THC63LVD1027

Dual Port LVDS Repeater LVDS
5ch x 2port
LVDS
5ch x 2port
35 20 135 5950 945 Dual/Single pixel link conversion
Distribution (duplication)
EMI suppression by small-swing LVDS signals
3.3 -40 to +85 TSSOP64
6.1 x 17
Buy Buy
THC63LVD1027D

Dual Port LVDS Repeater LVDS
5ch x 2port
LVDS
5ch x 2port
35 20 150 5950 1050 Dual/Single pixel link conversion
Distribution (duplication)
EMI suppression by small-swing LVDS signals
3.3 -40 to +105 TSSOP64
6.1 x 17
Buy -
